Description

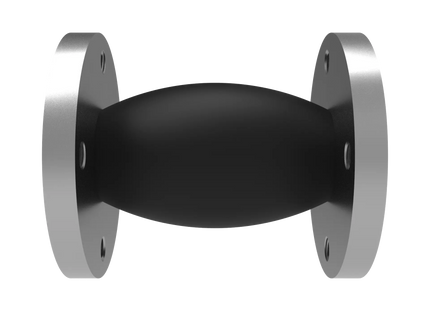

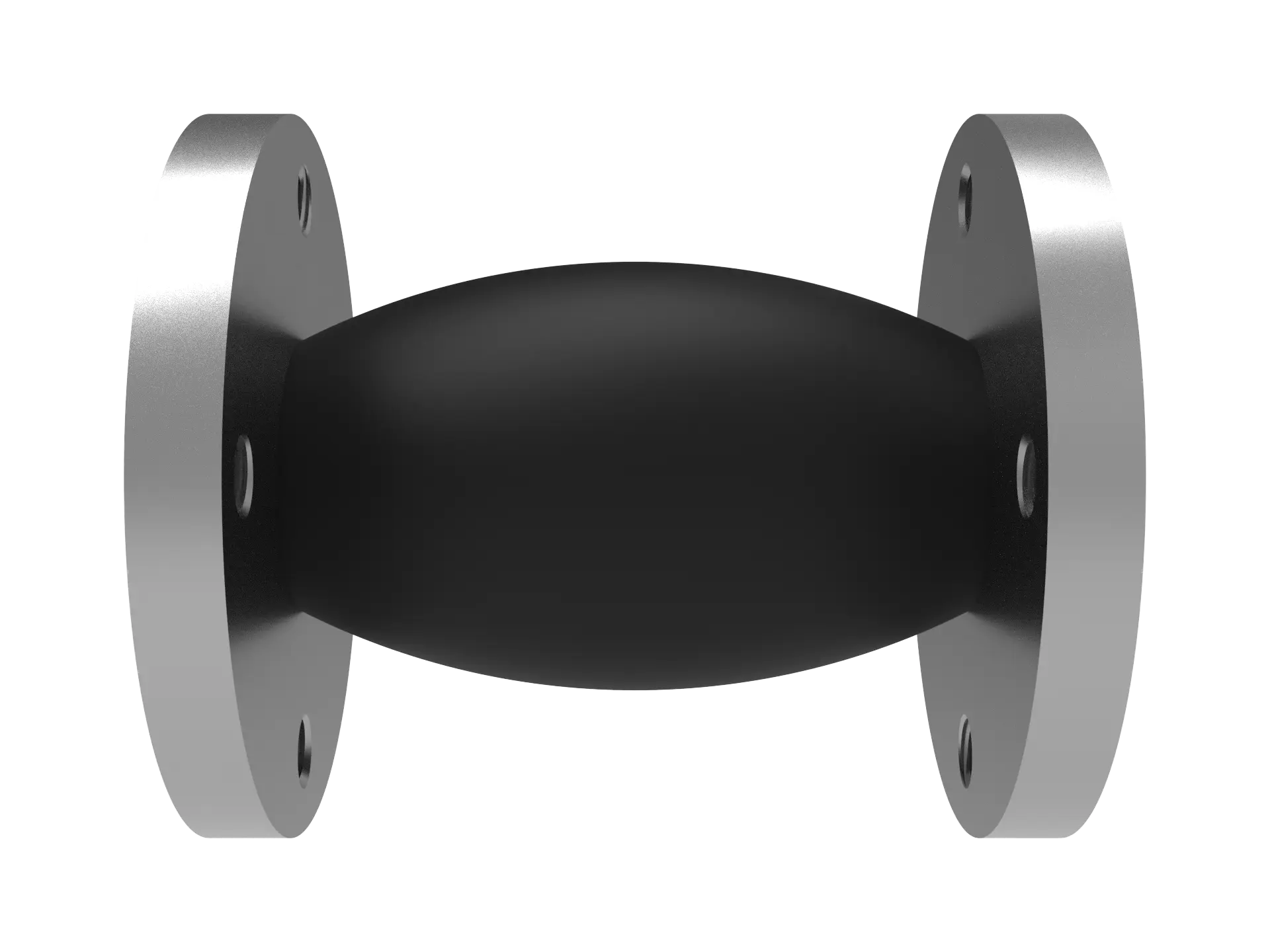

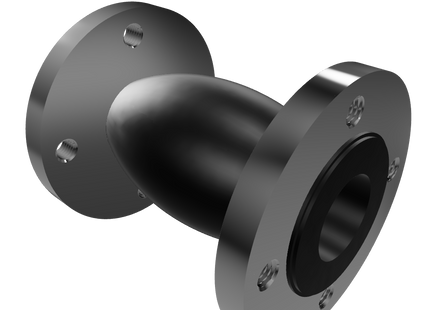

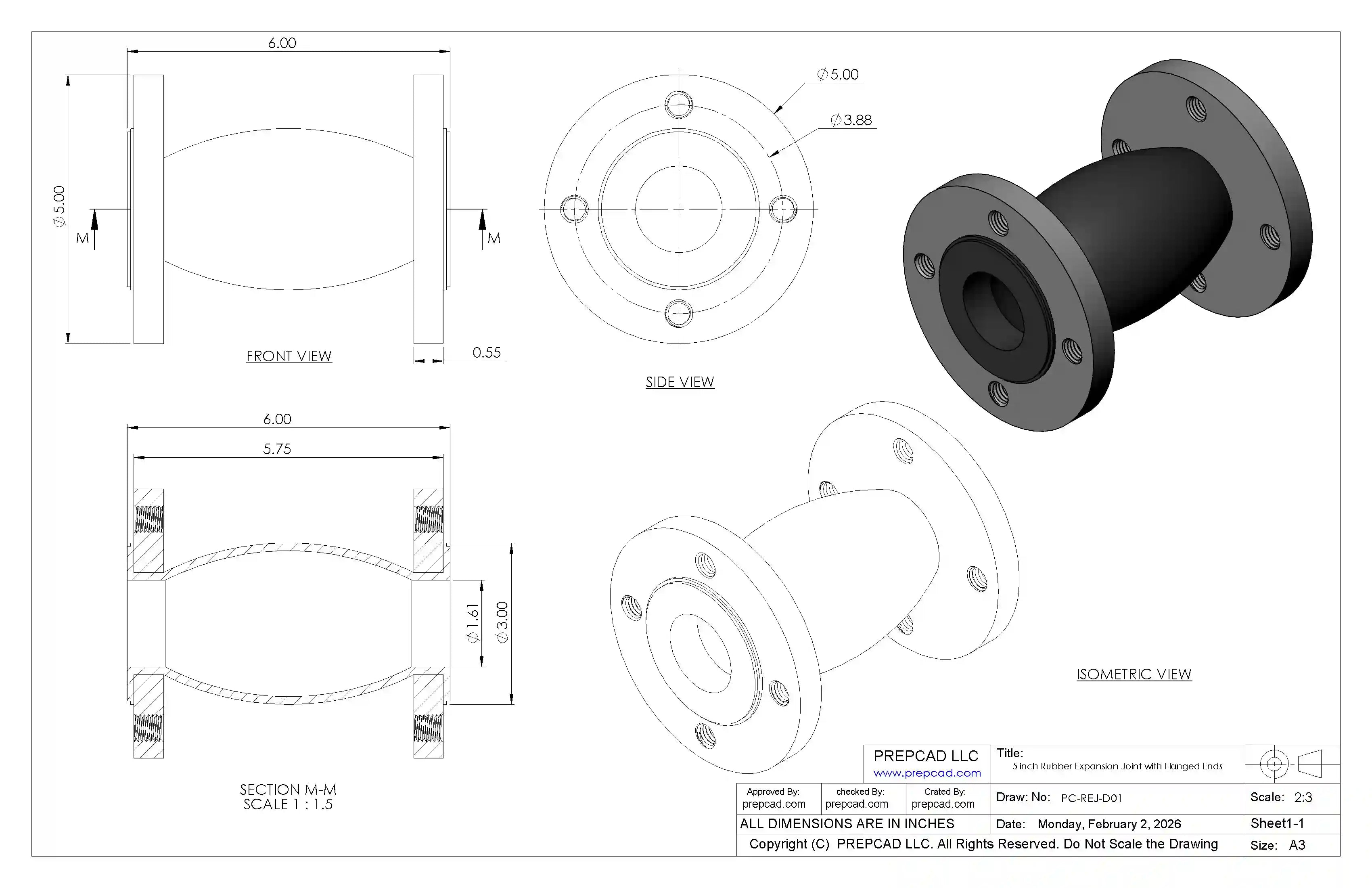

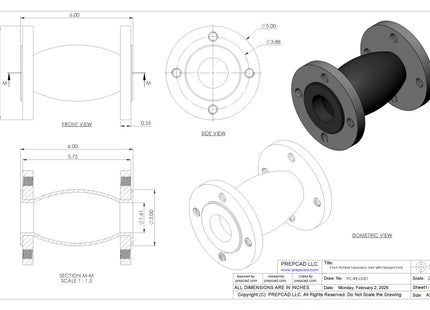

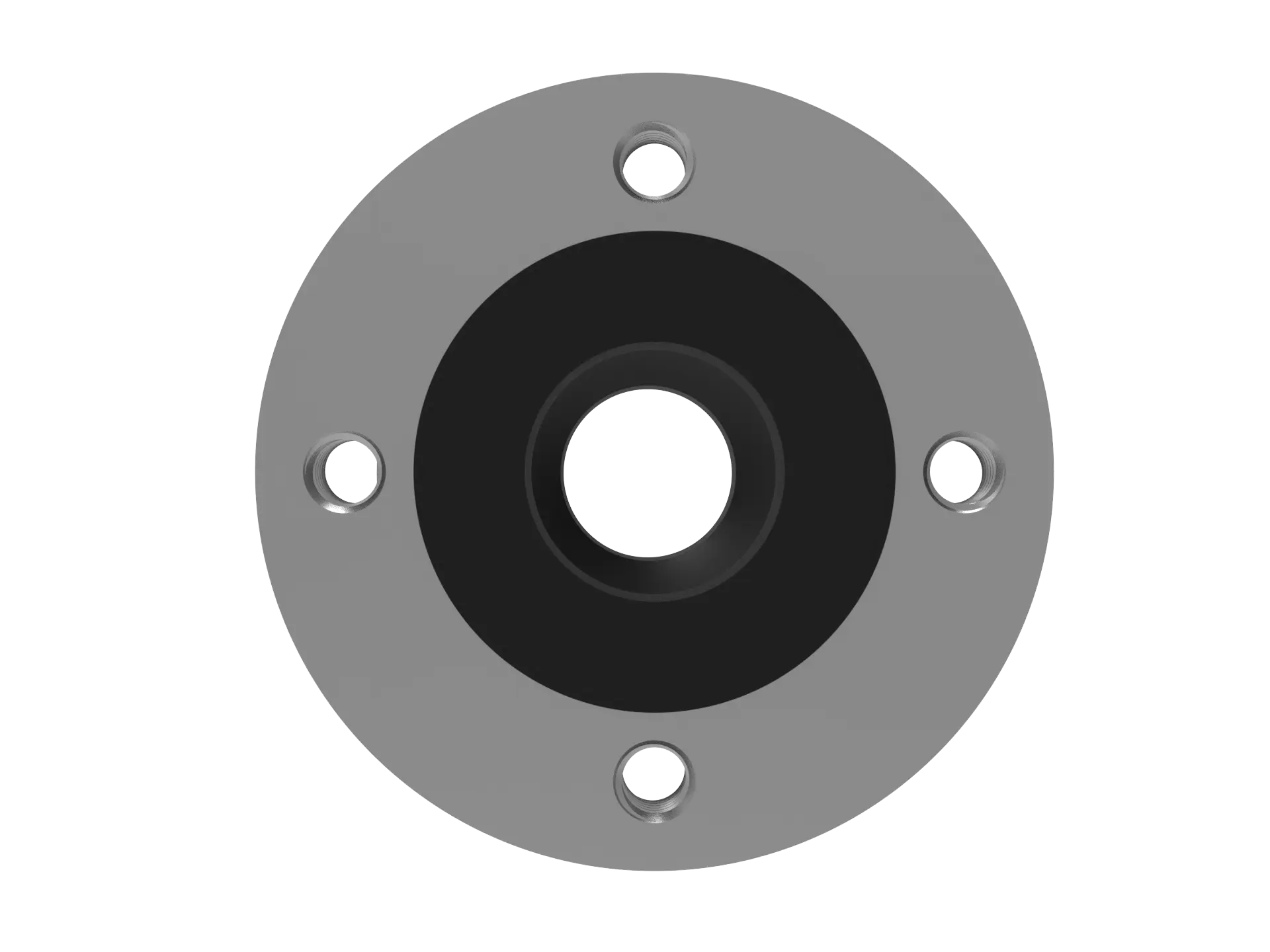

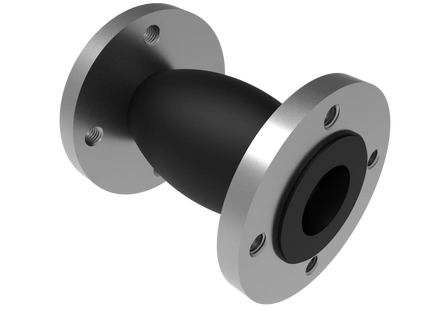

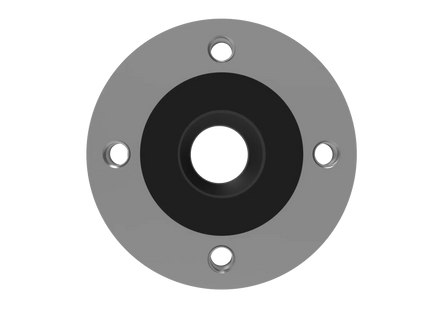

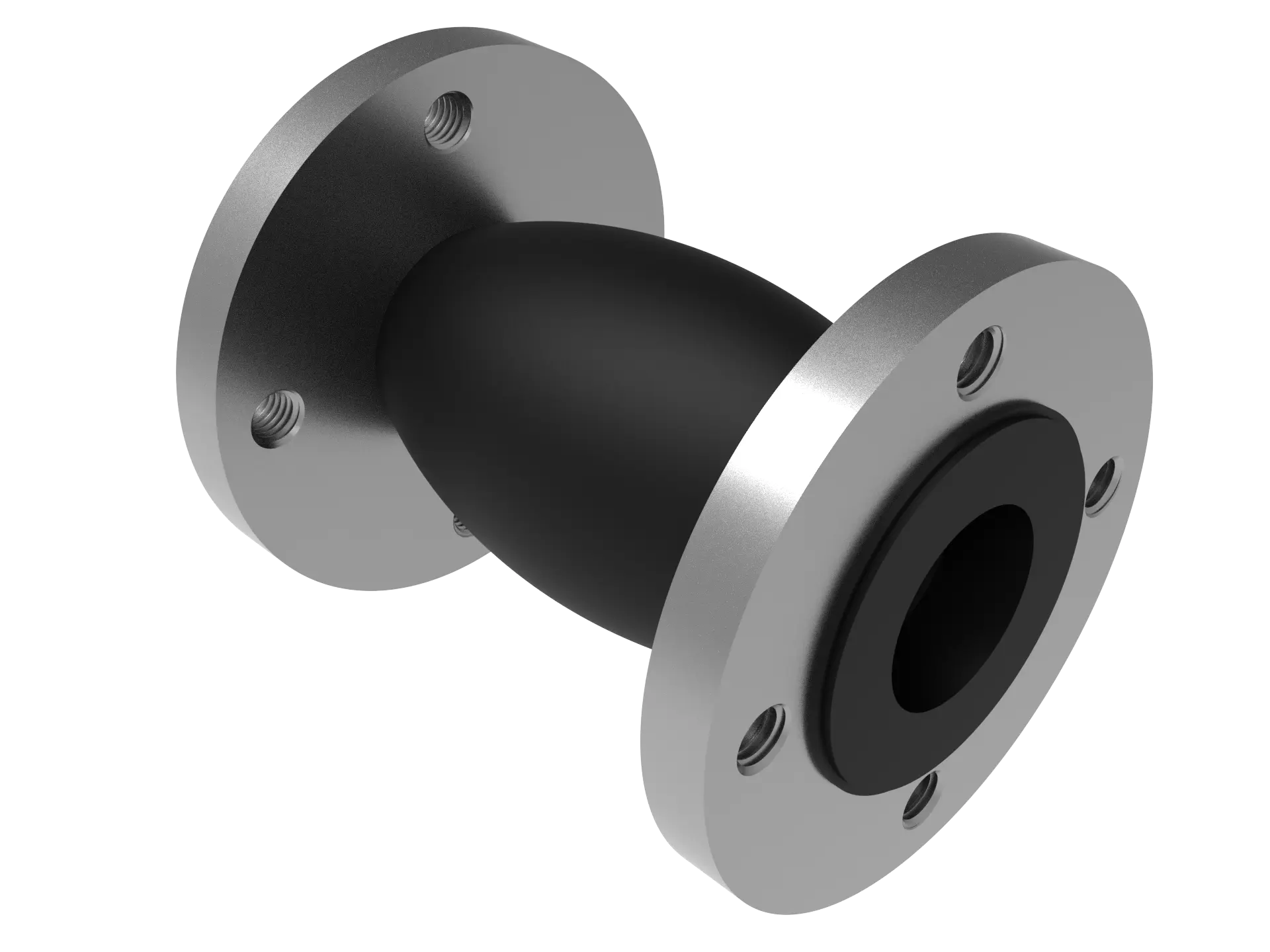

The Expansion Joint with Flanged Ends CAD Model is a precision-designed industrial component created for piping and ducting systems that require flexibility to absorb vibration, noise, thermal expansion, and minor misalignment. This model represents a neoprene rubber expansion joint with threaded bolt holes and a 5-inch flange outer diameter, commonly used in HVAC and industrial piping applications.

This CAD model is developed with accurate real-world proportions, making it suitable for mechanical design, plant layout planning, fabrication reference, and BIM coordination. The flexible neoprene body helps isolate vibration and reduce stress on connected equipment, while the flanged ends allow secure and standardized installation within piping systems.

Ideal for mechanical engineers, HVAC designers, piping consultants, and CAD professionals, this model integrates smoothly into existing assemblies and helps reduce design time while improving project accuracy.

Note:
This product includes only the CAD model. No physical product is supplied.

Included Cad File Formats

• STEP(.step / .stp): 3MF (.3mf)
• IGES (.iges / .igs): FBX (.fbx)
• SAT (.sat): DWG (.dwg)
• STL (.stl): DXF (.dxf)
• OBJ(.obj): PDF (.pdf)

Why Buy Our Cad Models

• Instant Download Zero Delay – Start using the models right after purchase.
• Save Time & Focus on Innovation – No need to model from scratch. Trusted by engineers & designers.
• Multiple File Formats – Compatible with SolidWorks/ Fusion 360/ AutoCAD & more.
• Affordable & Scalable – Premium-quality models without the high design cost.
• Perfect for Students & Professionals – Learn build or present with ease
