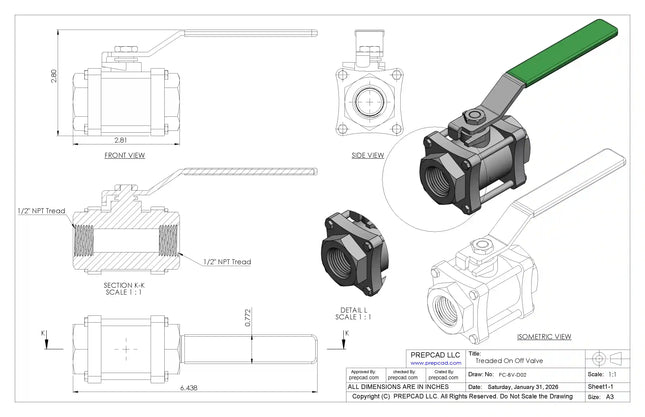

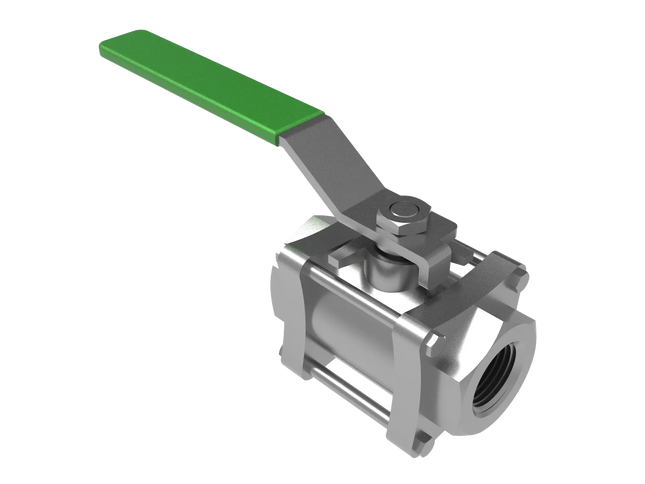

The 1/2 NPT Female 3-Piece Threaded Ball Valve with Lever Handle is a production-ready mechanical CAD model designed for piping, fluid control, and industrial system layouts. This valve features a 3-piece body construction, allowing easy disassembly for maintenance and accurate representation of real-world industrial components. The model is created to true scale with correct thread form and proportions, making it suitable for engineering design, manufacturing reference, piping layouts, and product visualization. The quarter-turn lever handle mechanism is clearly modeled to reflect actual valve operation. This CAD model is ideal for use in process piping, hydraulic and pneumatic systems, automation equipment, and general mechanical assemblies. Files are clean, lightweight, and ready for direct use in professional CAD workflows.
