Read more for customizable product design details More Information's

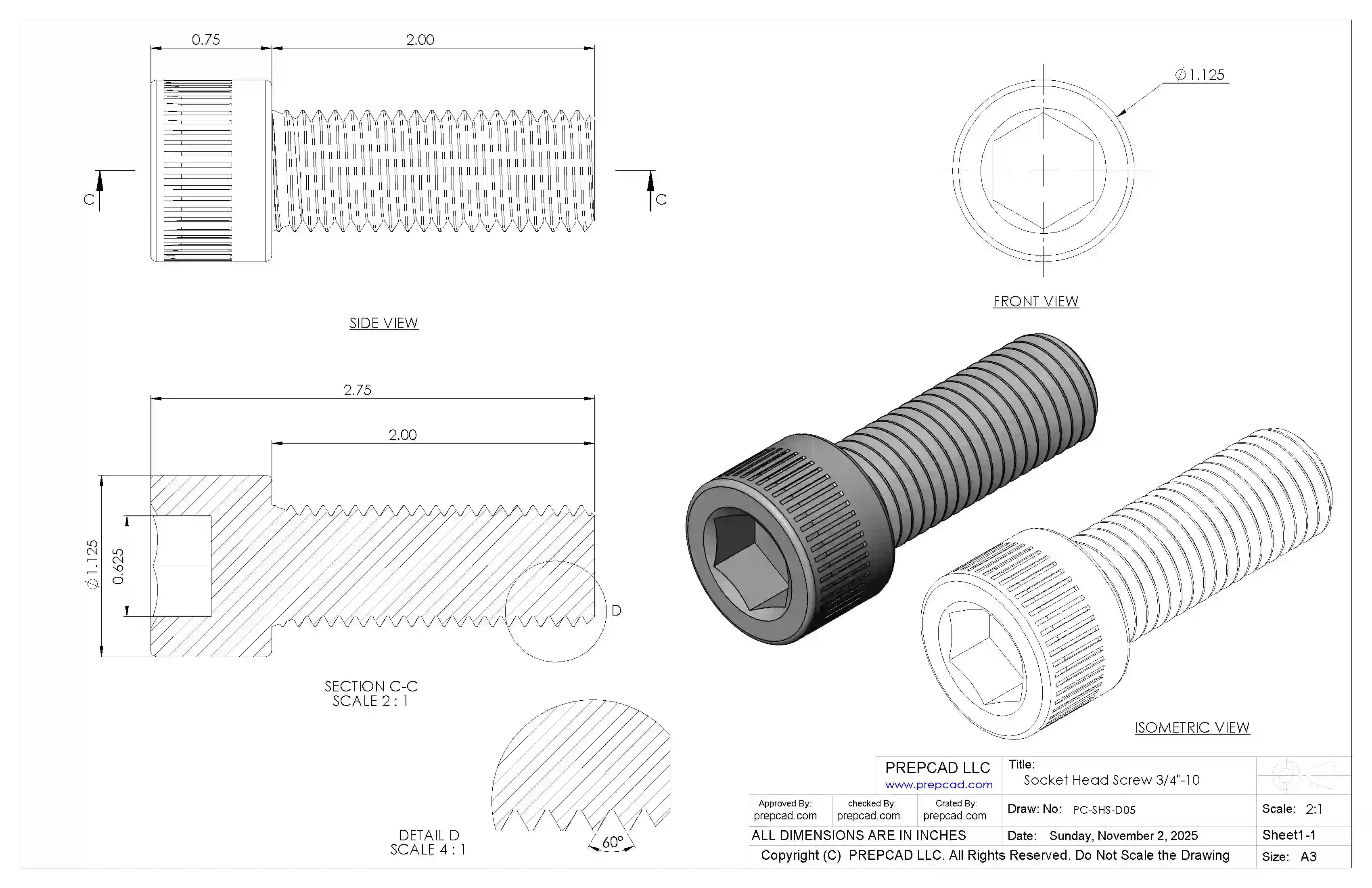

This professional-grade CAD model represents a standard 3/4-10 UNC (Unified National Coarse) Socket head bolt designed in strict accordance with ASME B18.3 dimensional standards and ASME B1.1 thread specifications.
his accurate digital model is perfect for mechanical design, assembly drawings, 3D printing, manufacturing, and engineering projects.
Our socket head cap screw model features exact dimensional accuracy based on industry standards, including precise thread modeling, hex socket geometry, and proper head dimensions. Ideal for use in SolidWorks, AutoCAD, Fusion 360, and other major CAD platforms.
Whether you're designing machinery, creating assemblies, prototyping, or need a reference model for 3D printing, this professional-grade CAD file will save you hours of modeling time.
| Thread Size : 3/4 -10 UNC | Thread Standard : UNC (Unified National Coarse) |
| Nominal Diameter : 0.75 in (19.05 mm) | Tread Per Inch (TPI) : 10 |
| Thread Class : 2A | Tread Direction : Right Hand |
| Thread Standard : ASME B1.1 | Drive Type : Internal Hex (Allen) |
| Head Type : Socket Head Cap Screw | Head Diameter : 1.125" (28.575mm) |
| Head Height : 0.75" (19.05mm) | Head Standard : ASME B18.3 |
| Tread Type : Fully Threaded | Units : Inch |
