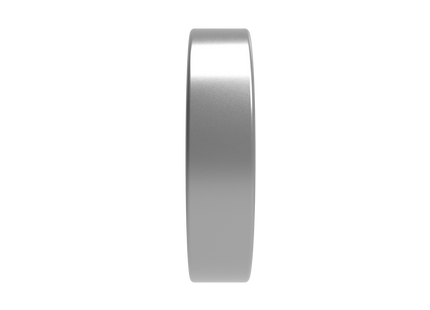

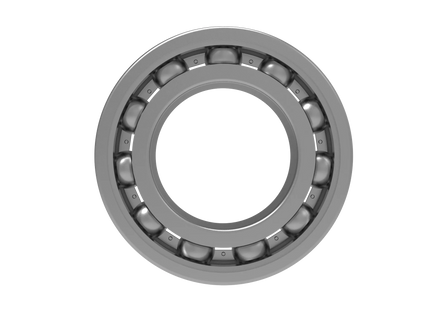

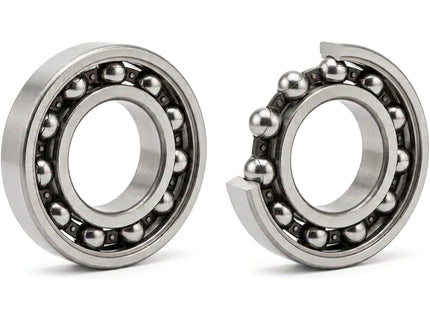

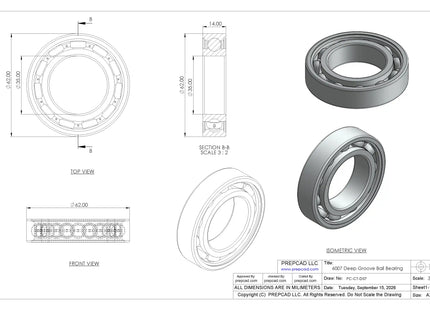

6007 Deep Groove Ball Bearing CAD Model – STEP, STL, IGES, DWG Download | 35x62x14 mm
Digital Product Only:
You are purchasing downloadable 3D CAD files, not a physical product.
$0.00
Description
The 6000 Series Deep Groove Ball Bearing CAD Model is a high-quality and dimensionally accurate 3D model designed for mechanical engineers, product designers, and CAD professionals.
The 6000 series bearings feature a single-row deep groove structure, allowing smooth rotation, low friction, and reliable performance in a wide range of machinery. This CAD model is created based on standard bearing dimensions, making it suitable for mechanical assemblies, machine design, product development, and engineering simulations.
This CAD model helps designers quickly integrate a standard bearing component into their projects without spending time modeling the geometry manually.
| Bearing Type : Deep Groove Ball Bearing | Bearing Series : 6000 Series |
| Structure : Single Raw | Sealing Options : Open |
|
Lubrication : Grease Lubricated |
Inner Diameter (mm) : 35 mm |
| Outer Diameter : 62mm | Width : 14 mm |
| Dynamic load capacity : 16.8 kN | Static load capacity : 10.3 kN |
| Fatigue load limit : 0.47 kN | Weight : 0.146 kg |
| Reference thermal speed : 12000 tr/min | Mechanical Limit Speed : 19000 tr/min |
Included Cad File Formats
- STEP(.step / .stp): 3MF (.3mf)
- IGES (.iges / .igs): FBX (.fbx)
- SAT (.sat): DWG (.dwg)
- STL (.stl): DXF (.dxf)
- OBJ(.obj): PDF (.pdf)
Why Buy Our Cad Models
- Instant Download Zero Delay – Start using the models right after purchase.
- Save Time & Focus on Innovation – No need to model from scratch. Trusted by engineers & designers.
- Multiple File Formats – Compatible with SolidWorks/ Fusion 360/ AutoCAD & more.
- Affordable & Scalable – Premium-quality models without the high design cost.
- Perfect for Students & Professionals – Learn build or present with ease
01
Read the Part Number
Use 6001-2RS C3 as an example to understand the standard bearing designation system.
EXAMPLE BEARING DESIGNATION
6001-2RS C3
6TYPE
0SERIES
01BORE
-
2RSSEALING
C3CLEARANCE
6
TYPE
Deep Groove Ball Bearing
Single-row deep groove bearing for primarily radial loads and axial loads in both directions.
0
SERIES
60 Dimension Series
Identifies the bearing dimension series. The 60 series is a common light-section bearing series.
01
BORE CODE
12 mm Bore
Bore code 01 represents a nominal bore diameter of 12 mm.
2RS
SEALING
Rubber Seals — Both Sides
2RS commonly indicates rubber contact seals fitted on both sides of the bearing.
C3
CLEARANCE
Greater-Than-Normal Clearance
C3 indicates internal radial clearance greater than the normal clearance class.
Standard Metric Bore Codes
00, 01, 02 and 03 use special bore sizes. From 04 onward, bore diameter = code × 5 mm.
00
10 mm
01
12 mm
6001
02
15 mm
03
17 mm
04+
Bore = Code × 5 mm
Example: 05 × 5 = 25 mm
6001
QUICK REFERENCE
BORE
Ø12 mm
OUTSIDE DIAMETER
Ø28 mm
WIDTH
8 mm
TYPE
Deep Groove
Common Bearing Suffixes
2Z / ZZ
Metal shields on both sides
2RS
Rubber seals on both sides
C3
Greater-than-normal internal clearance
Common 6001 Designations
6001
6001-2Z
6001-ZZ
6001-2RS
6001-C3
6001-2RS/C3
Engineering note: Suffix terminology can vary between bearing manufacturers. This guide is a general reference for standard metric deep groove ball bearings. Always verify the manufacturer's catalogue when selecting a bearing for a specific application.
