Flat Head Screw M4 × 0.7 mm Thread | STEP, IGES, STL, OBJ , FBX, DWG, DXF

FREE

Select Bolt Length

Digital Product Only: Digital Download Only — No Physical Product Included.

Available File Formats

STEP(.step / .stp)
IGES(.iges / .igs)
SAT(.sat)
OBJ(.obj)
FBX(.fbx)
STL(.stl)
3MF(.3mf)
DWG(.dwg)
DXF(.dxf)
PDF(.pdf)

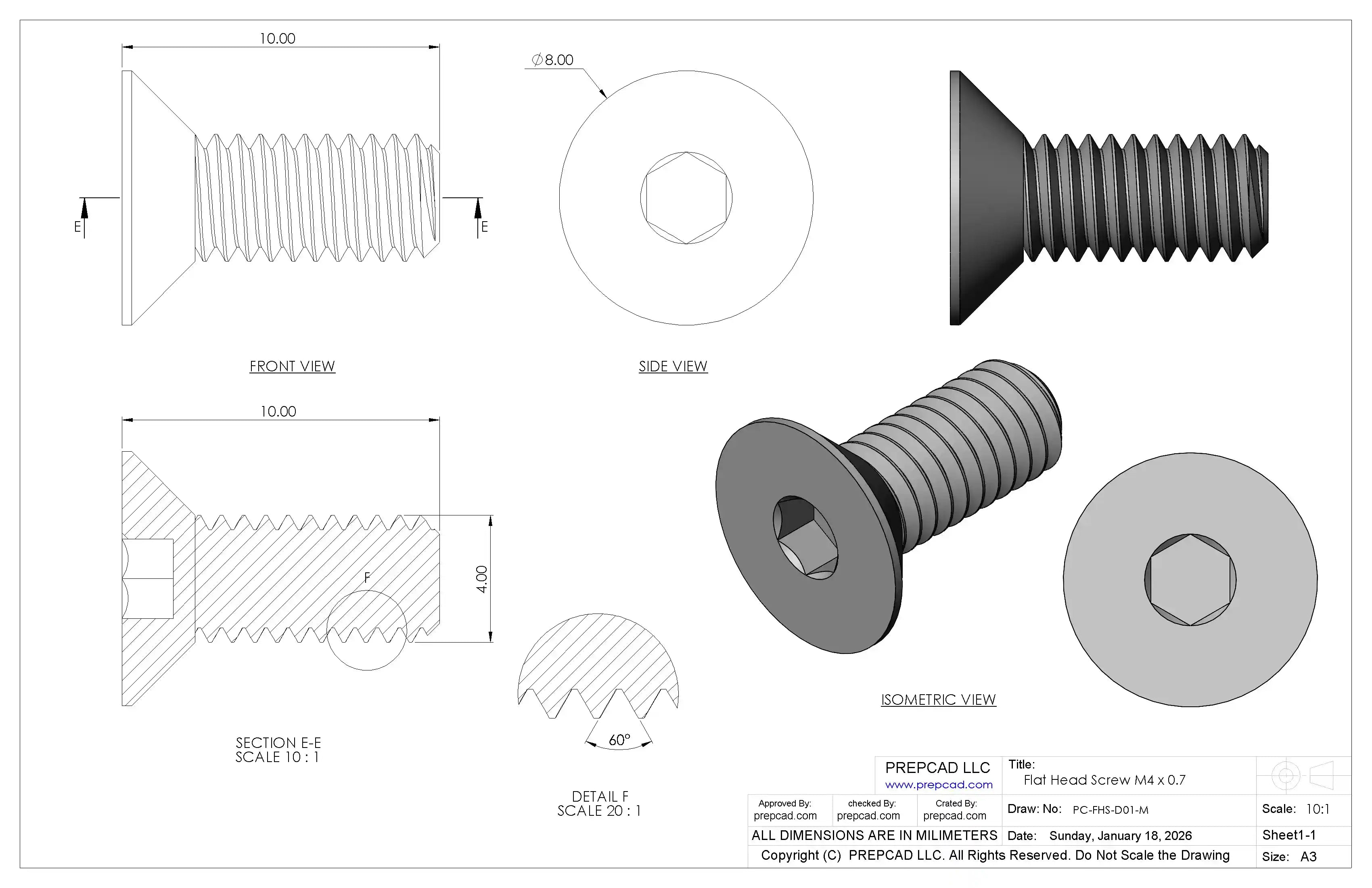

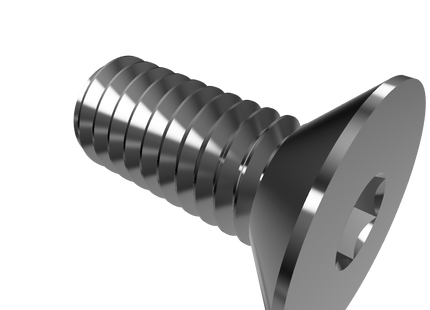

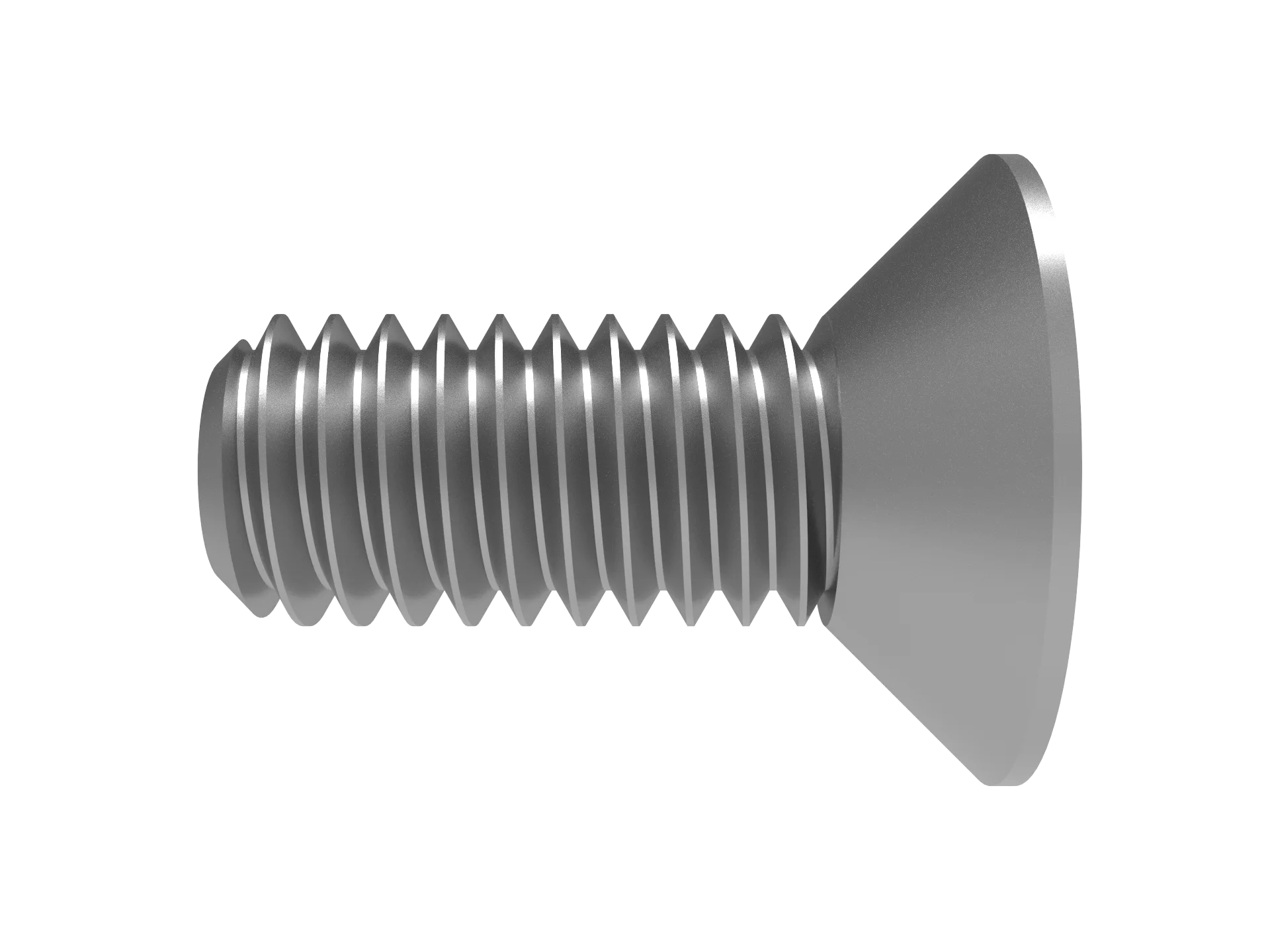

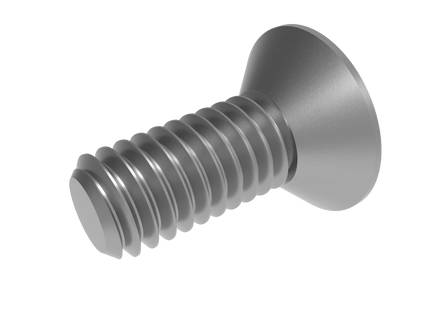

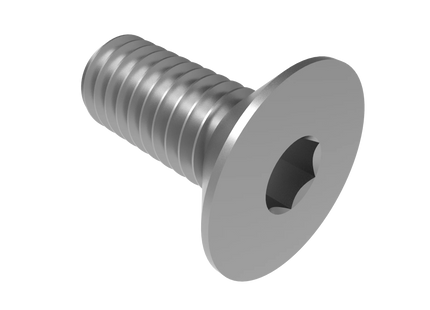

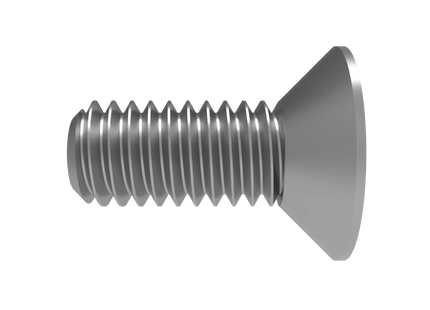

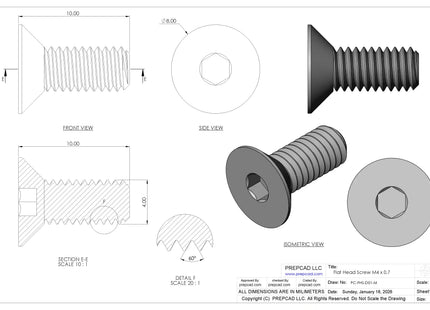

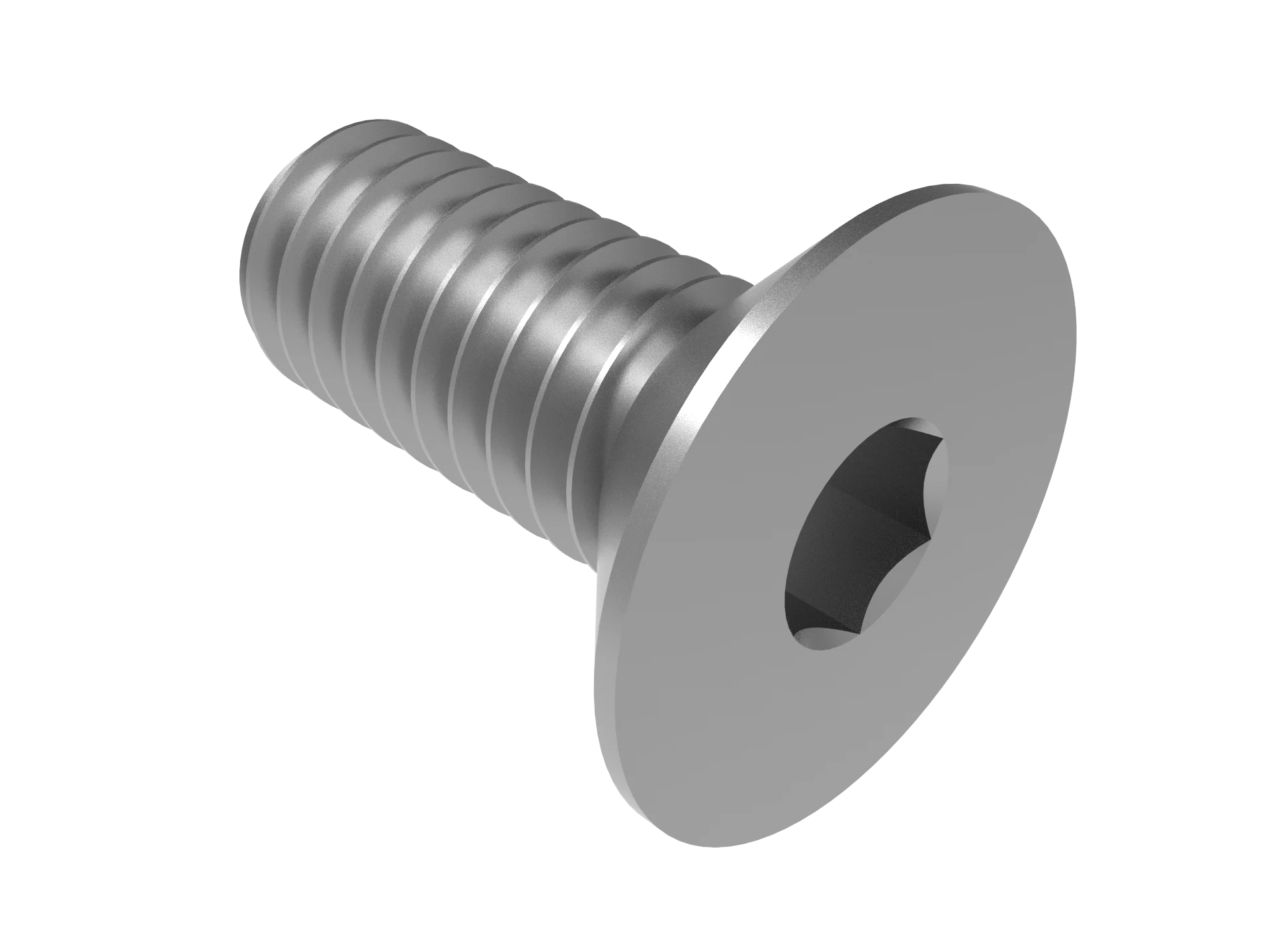

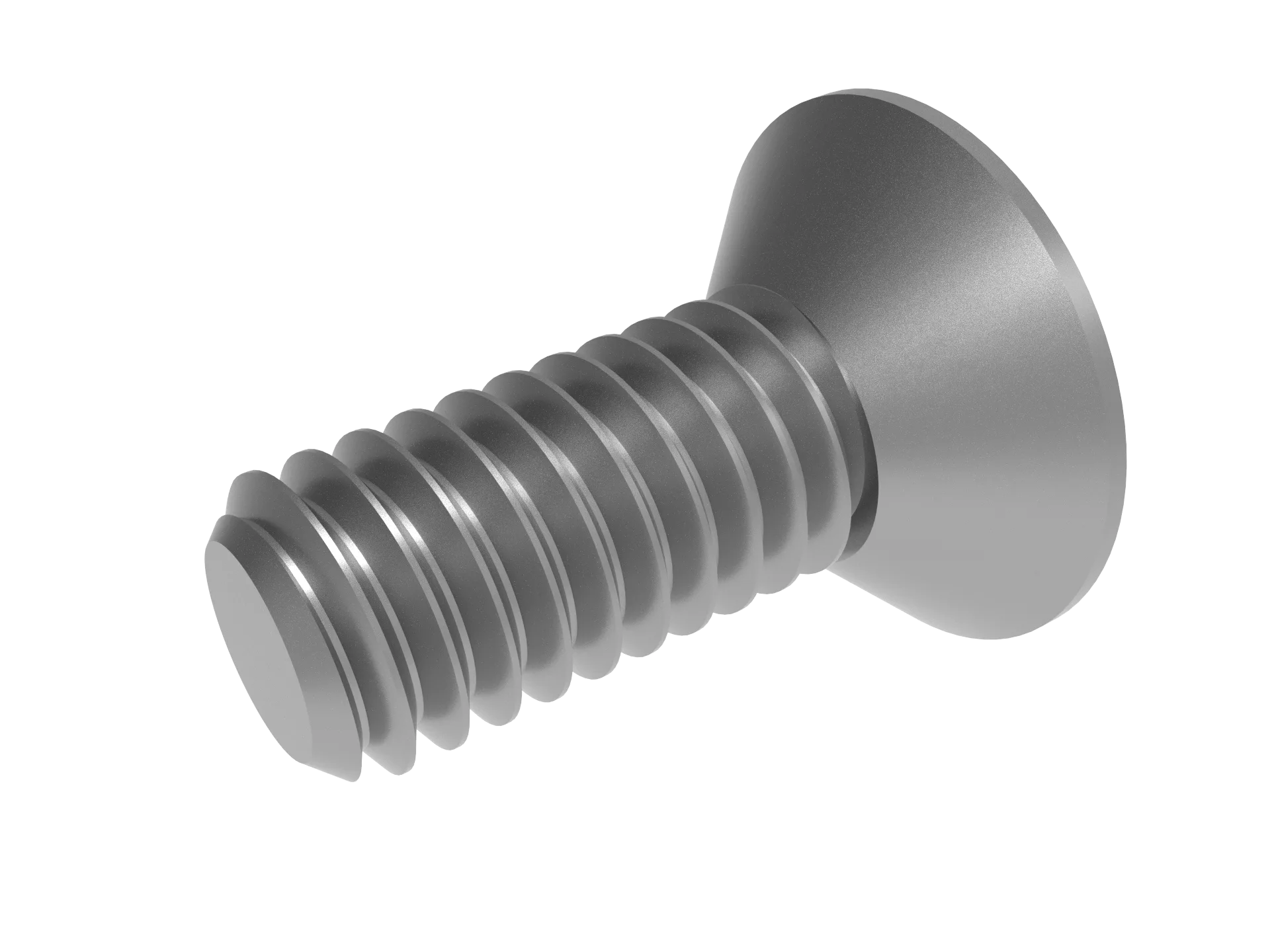

This Flat Head Screw M4 × 0.7 mm, CAD model is a production-ready, dimensionally accurate fastener design, ideal for mechanical assemblies, 3D printing, and manufacturing documentation.

The model follows standard ISO metric thread proportions, making it suitable for real-world engineering applications. Designed with clean geometry and correct head profile, this screw can be directly used in assemblies, simulations, CNC workflows, or additive manufacturing.

Perfect for mechanical engineers, product designers, students, and manufacturers, this CAD model saves design time and ensures accuracy in your projects.

Type Flat Head Screw
Thread Size M4 x 0.7
Length 10 cm / Customizable Length
Head Type Flat Head (Countersunk)
Drive Type Hex Socket
System Of Measurement Metric
Tread Direction Right Hand
Tread Fully Treaded
CAD Formats STEP(.step / .stp) , IGES (.iges / .igs) , SAT (.sat) , PRT (.prt) , STL (.stl) , FBX (.fbx) , OBJ(.obj) ,3MF  (.3mf) , DWG (.dwg) , DXF (.dxf) , PDF (.pdf)  , JPEG(jpeg)
Use Cases 3D assemblies, machine design, simulation, 3D printing
