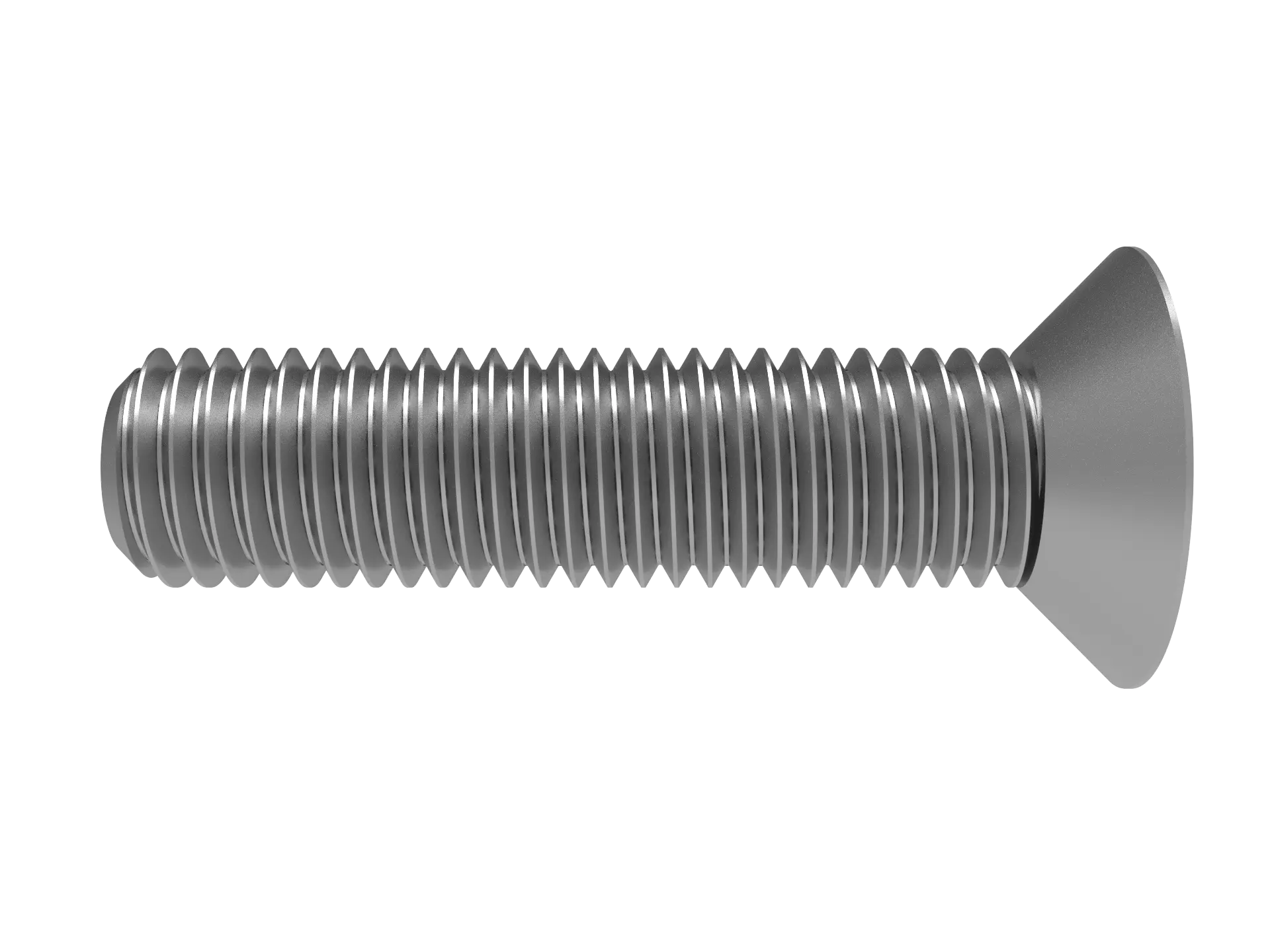

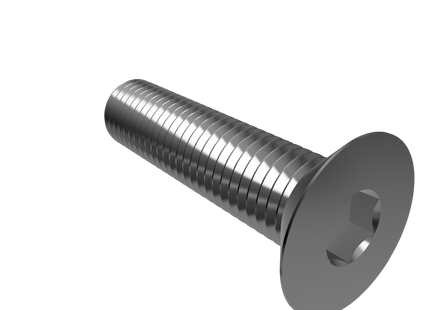

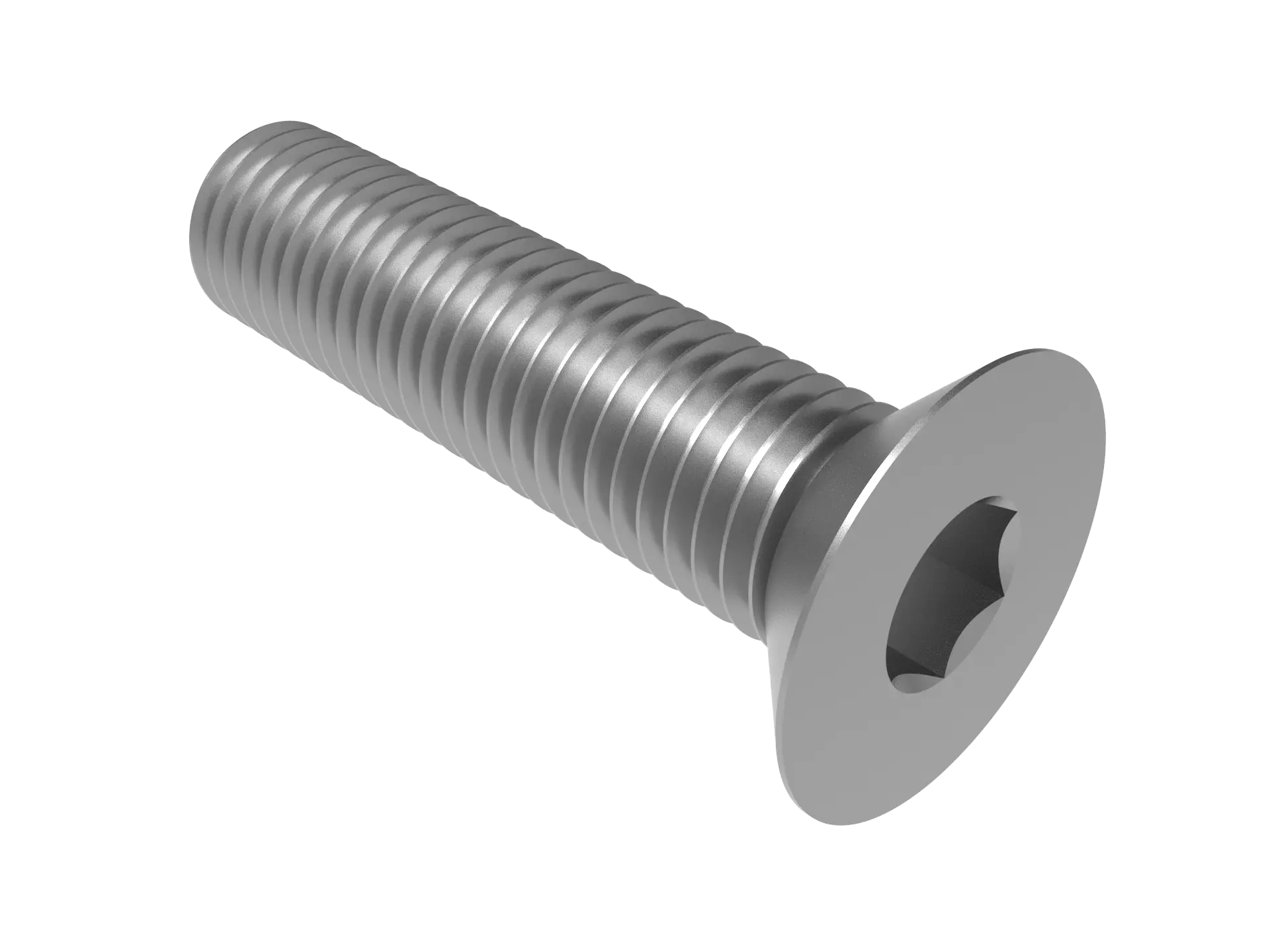

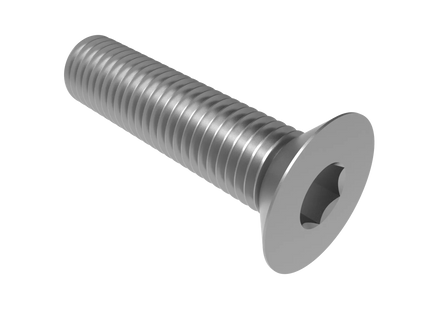

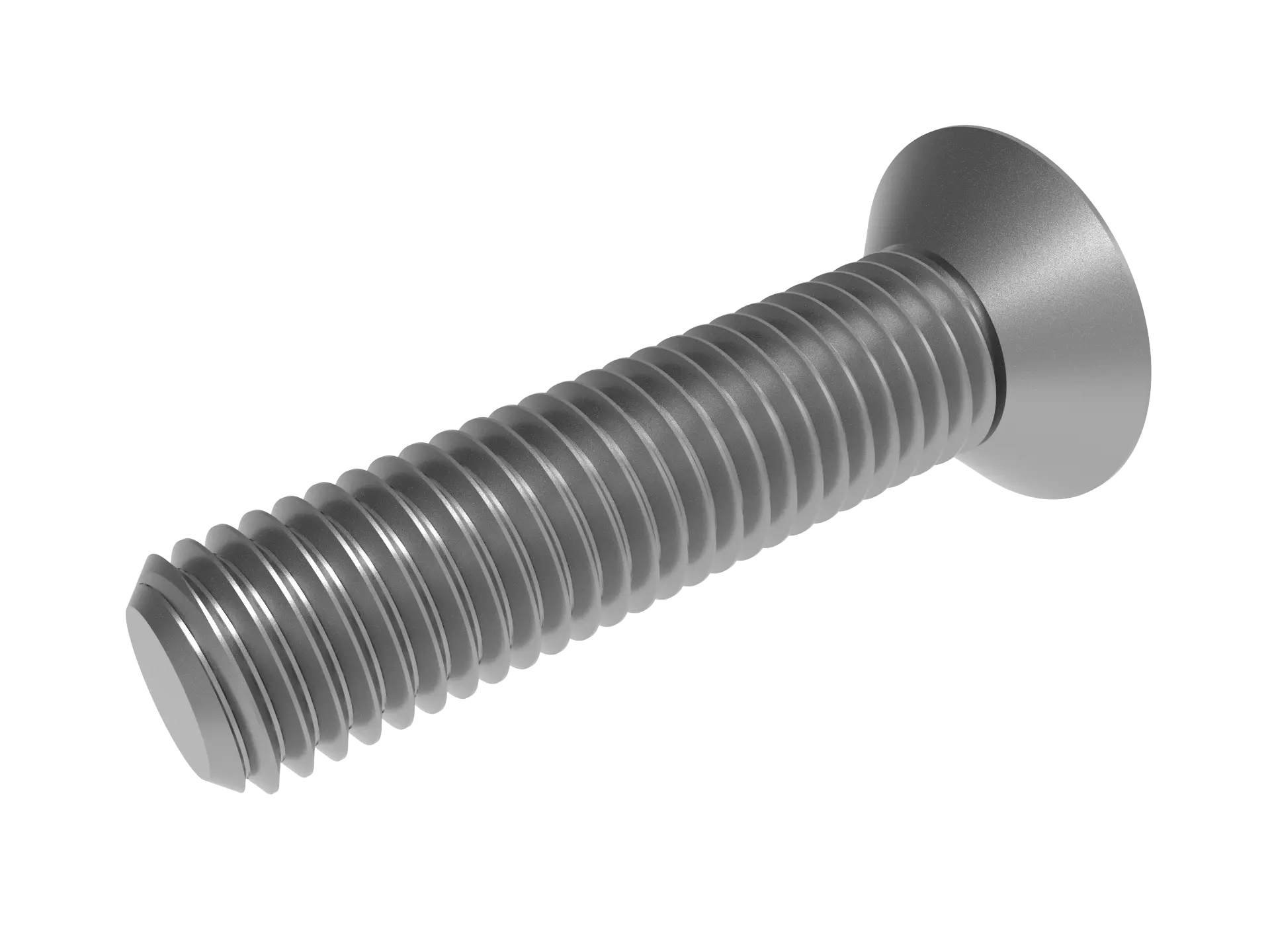

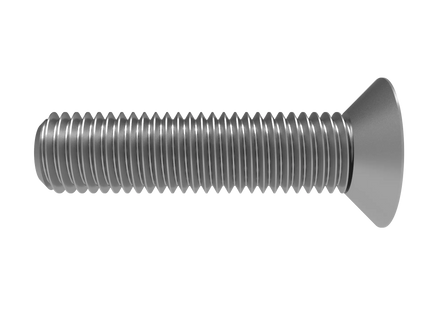

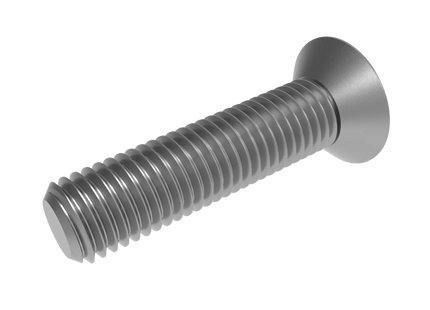

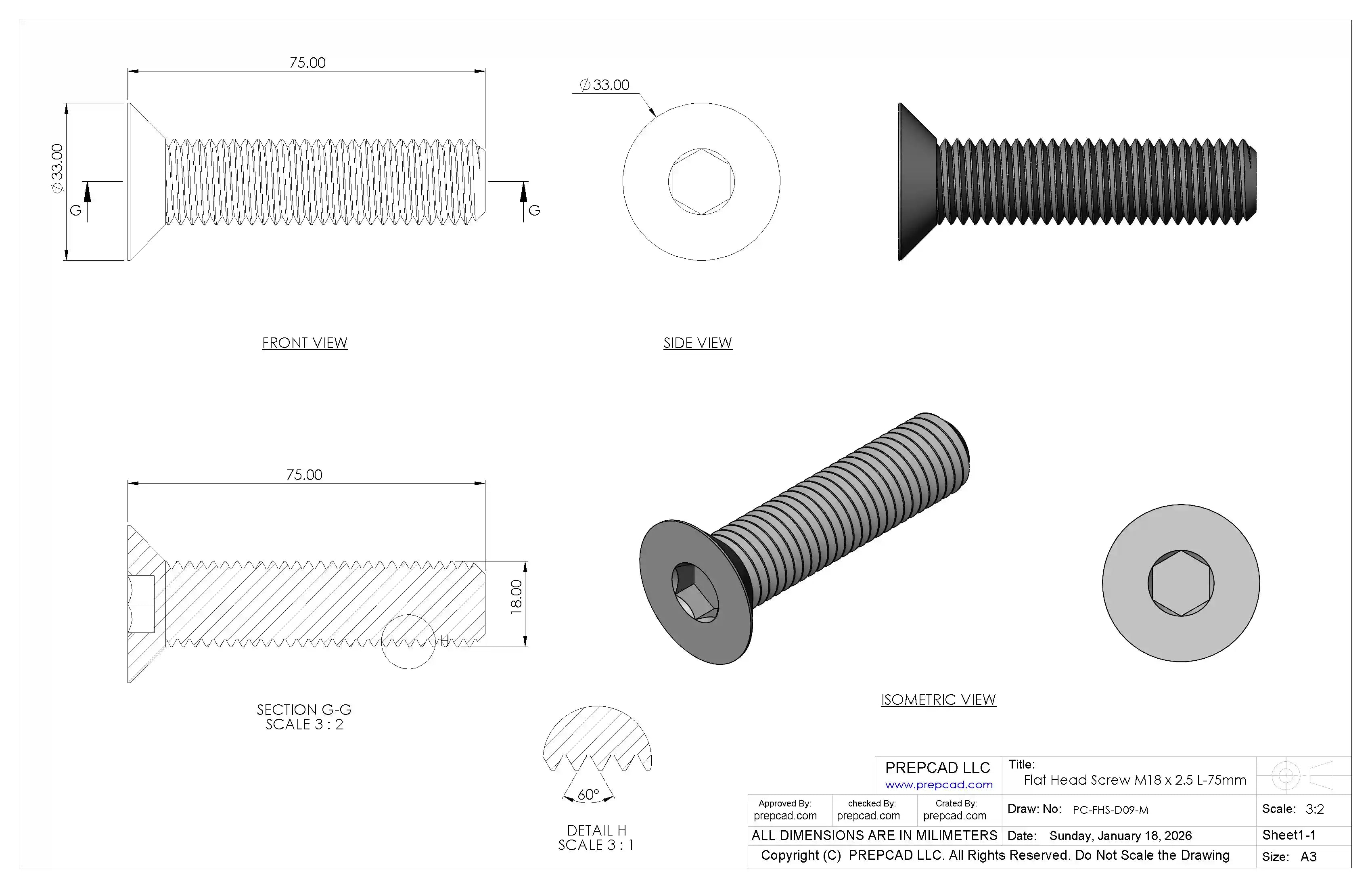

This Flat Head Screw M18 × 2.5 mm, CAD model is a production-ready, dimensionally accurate fastener design, ideal for mechanical assemblies, 3D printing, and manufacturing documentation.
The model follows standard ISO metric thread proportions, making it suitable for real-world engineering applications. Designed with clean geometry and correct head profile, this screw can be directly used in assemblies, simulations, CNC workflows, or additive manufacturing.
Perfect for mechanical engineers, product designers, students, and manufacturers, this CAD model saves design time and ensures accuracy in your projects.
| Type | Flat Head Screw |
| Thread Size | M18 x 2.5 |
| Length | 75 mm / Customizable Length |
| Head Type | Flat Head (Countersunk) |
| Drive Type | Hex Socket |
| System Of Measurement | Metric |
| Tread Direction | Right Hand |
| Tread | Fully Treaded |

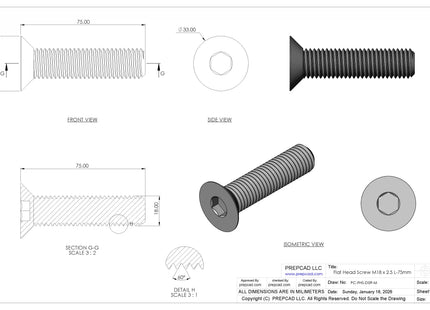

| CAD Formats | STEP(.step / .stp) , IGES (.iges / .igs) , SAT (.sat) , PRT (.prt) , STL (.stl) , FBX (.fbx) , OBJ(.obj) ,3MF (.3mf) , DWG (.dwg) , DXF (.dxf) , PDF (.pdf) , JPEG(jpeg) |
| Use Cases | 3D assemblies, machine design, simulation, 3D printing |
