Description

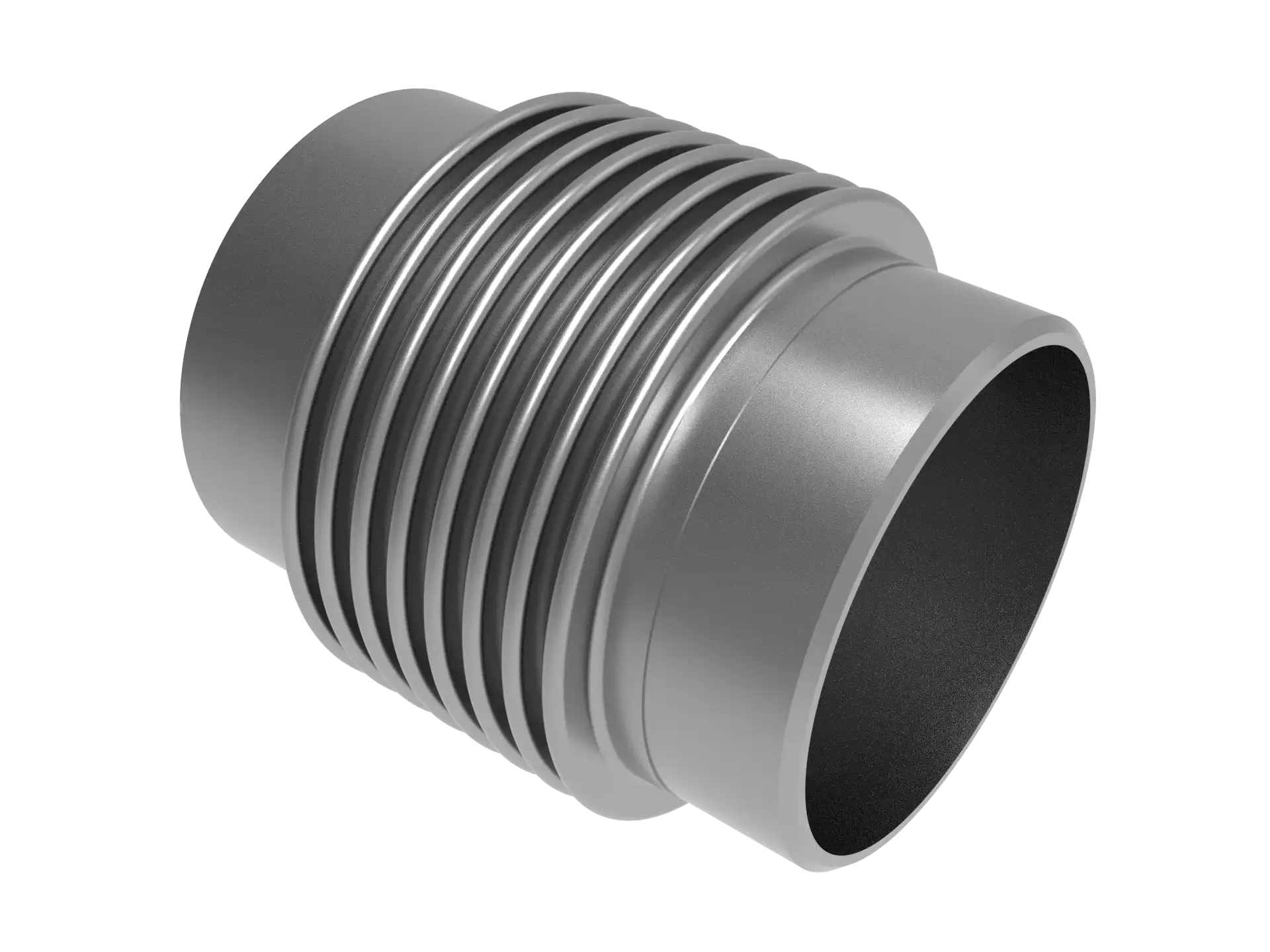

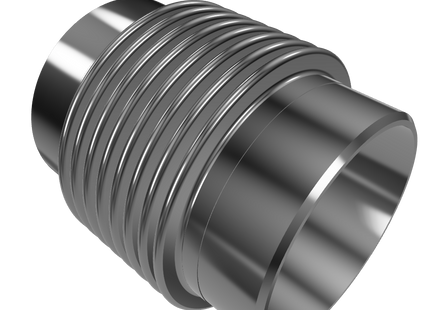

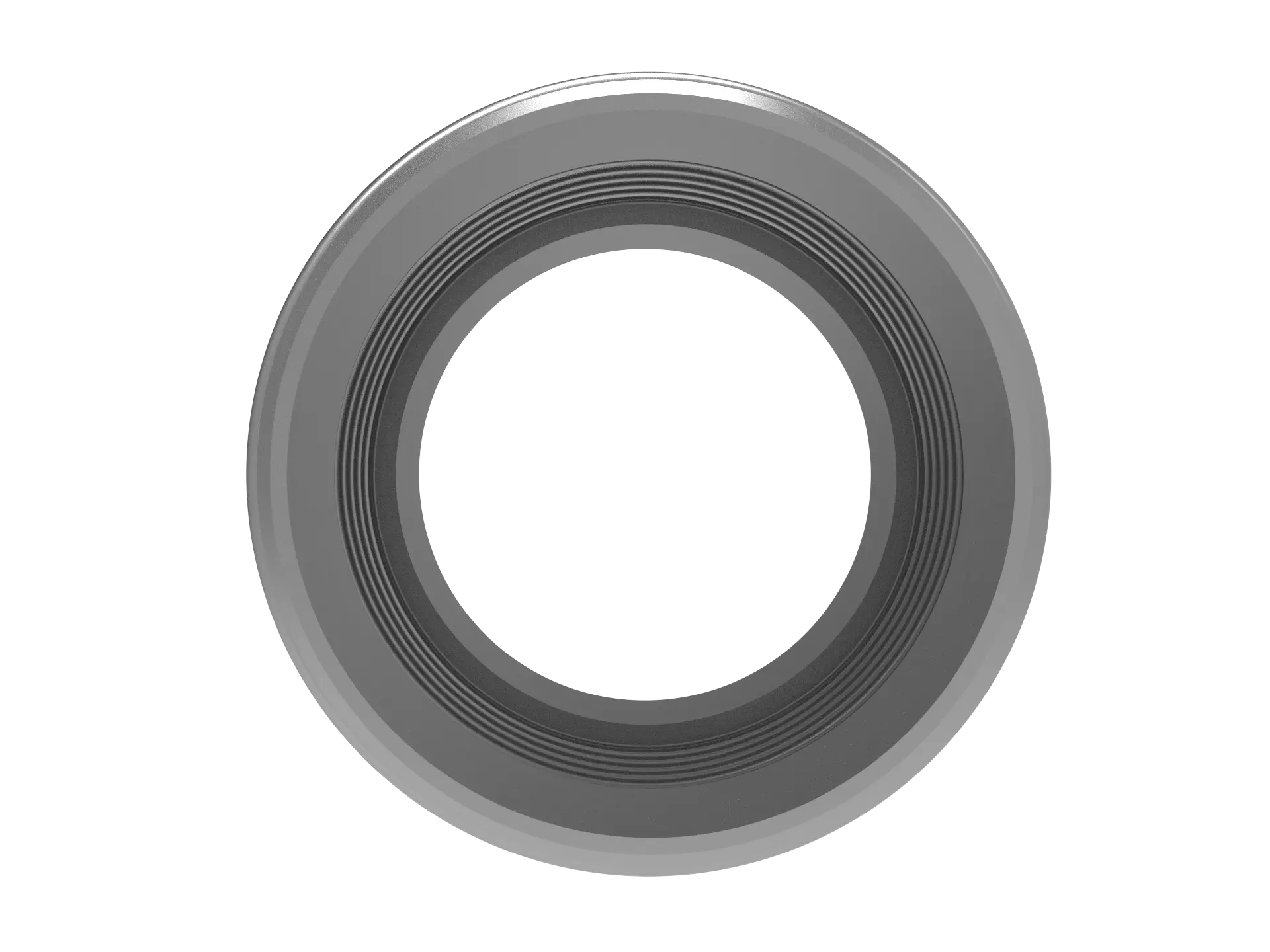

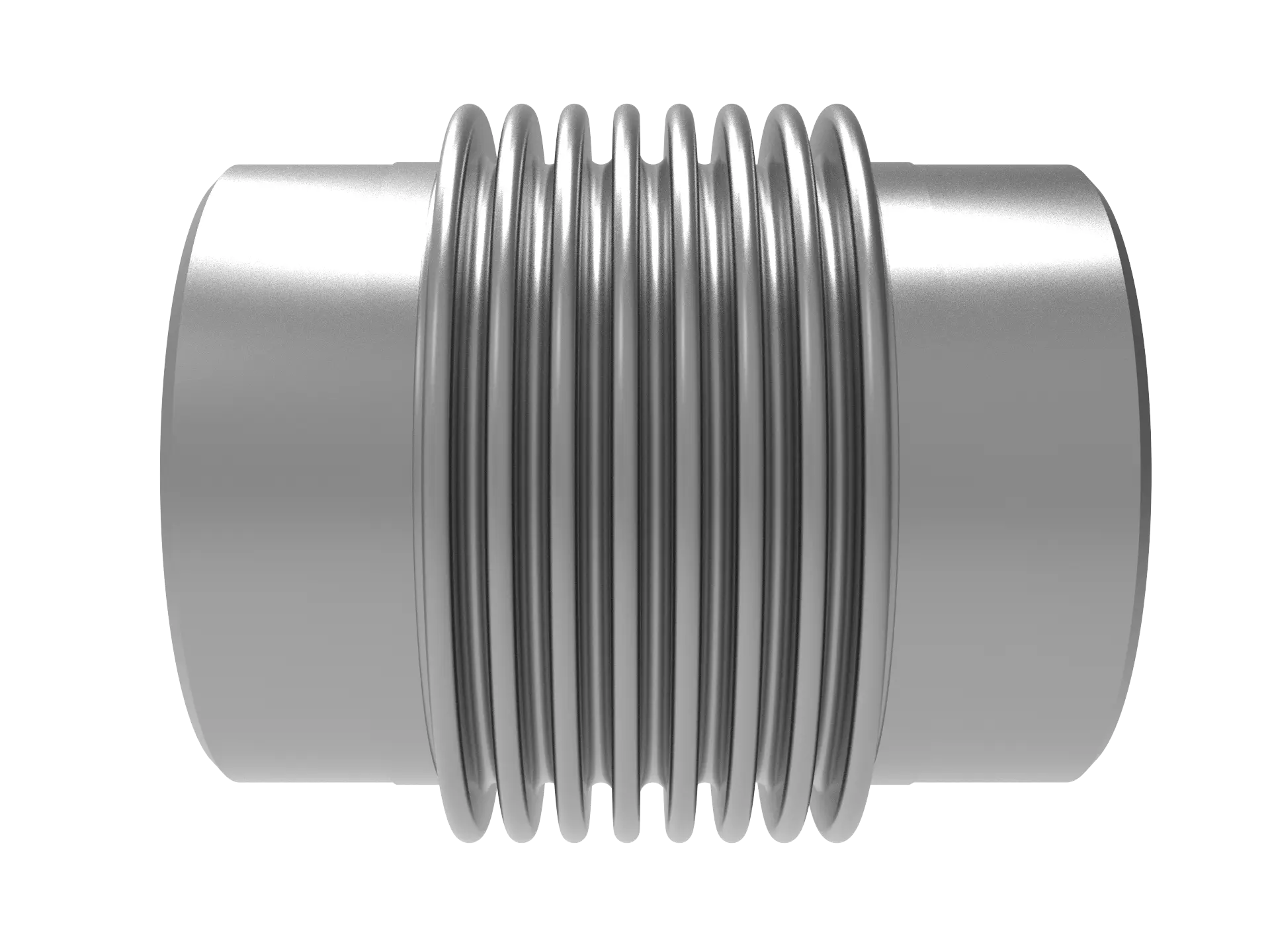

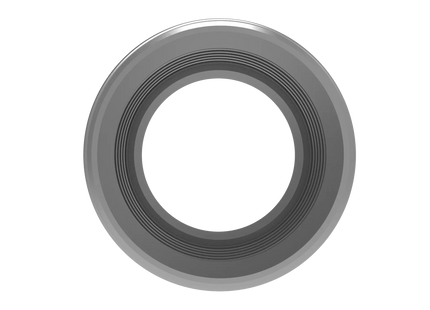

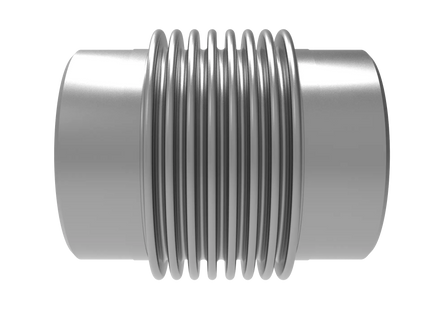

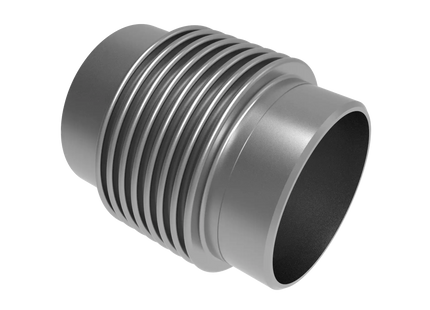

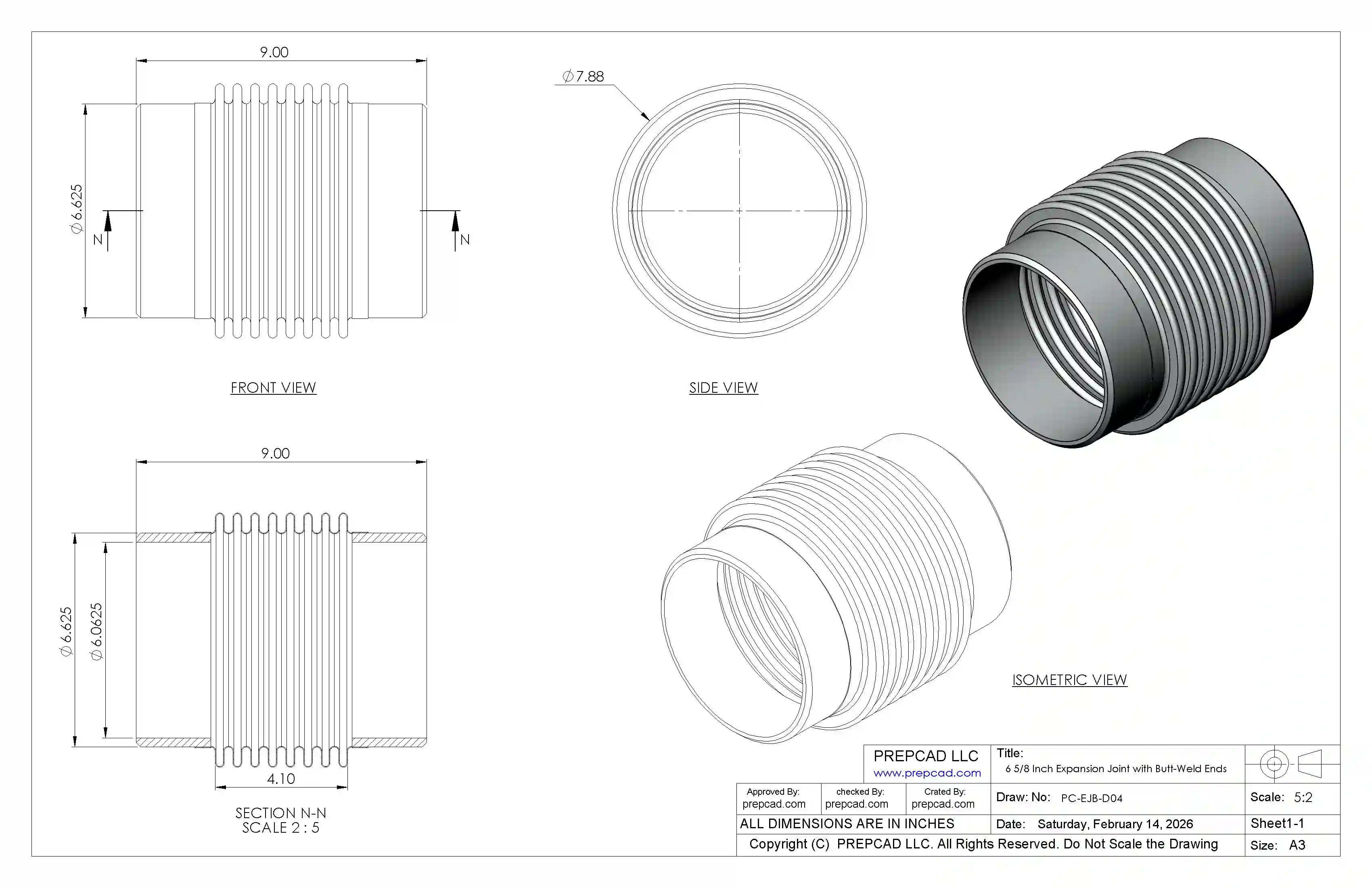

The Expansion Joint with Butt-Weld Ends CAD Model is a precision-engineered industrial piping component designed to accommodate thermal expansion, vibration, and axial movement in welded pipe systems. This model is specifically created for 6-5/8 inch pipe outside diameter (OD) applications where permanent, leak-resistant connections are required.

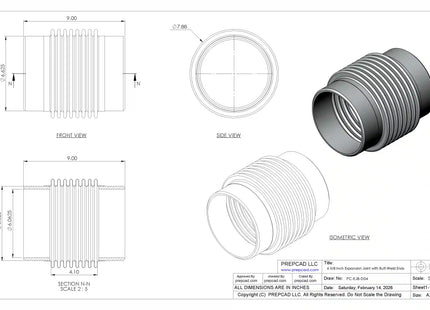

Featuring butt-weld ends, this expansion joint is ideal for high-pressure and high-temperature piping systems commonly used in power plants, oil & gas facilities, chemical processing units, and industrial manufacturing environments. The CAD model is built with accurate real-world dimensions, making it suitable for mechanical design, plant layout, fabrication drawings, stress analysis, and BIM workflows.

This model helps engineers and designers reduce design time while maintaining accuracy and compliance with industry standards. It integrates seamlessly into welded piping assemblies and supports professional engineering and manufacturing requirements.

Note:
This product includes only the CAD model. No physical product is provided.

Included Cad File Formats

• STEP(.step / .stp): 3MF (.3mf)
• IGES (.iges / .igs): FBX (.fbx)
• SAT (.sat): DWG (.dwg)
• STL (.stl): DXF (.dxf)
• OBJ(.obj): PDF (.pdf)
