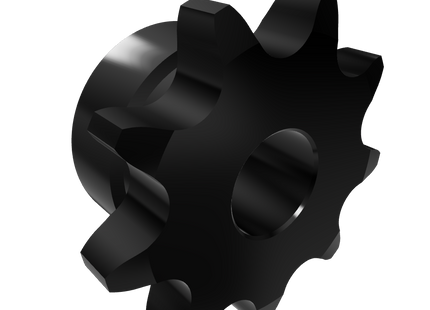

ANSI #40 Roller Chain Sprocket CAD Model, 9 Teeth | Keyway & Set Screw Options

(1 reviews)
FREE

Select Available Configurations

Digital Product Only: Digital Download Only — No Physical Product Included.

Available File Formats

STEP(.step / .stp)
IGES(.iges / .igs)
SAT(.sat)
OBJ(.obj)
FBX(.fbx)
STL(.stl)
3MF(.3mf)
DWG(.dwg)
DXF(.dxf)
PDF(.pdf)

Download a high-quality ANSI #40 Roller Chain Sprocket CAD Model designed for mechanical engineering, machine design, power transmission systems, automation equipment, and manufacturing applications.

This model is available in multiple mounting configurations, allowing you to select the option that best matches your project requirements.

Plain Bore Standard bore design  No keyway

No set screw Ideal for custom machining
Bore with Keyway & Grub Screw Finished bore Precision keyway

Grub screw (set screw) included Ready for shaft mounting
Fully Customizable Version Custom bore diameter Custom keyway dimensions

Custom grub screw location Tailored to your project requirements

Features

✔ ANSI #40 Roller Chain Standard             ✔ 9 Tooth Configuration

✔ Accurate Engineering Dimensions          ✔ Production-Ready CAD Geometry

✔ Mechanical Design Optimized                ✔ Compatible with Major CAD Software

✔ Multiple Configuration Options              ✔ Instant Digital Download

Download Information

This ANSI #40 Roller Chain Sprocket CAD Model is available for instant download and can be used for engineering, manufacturing, educational, and product development purposes.
