6000 Deep Groove Ball Bearing CAD Model – STEP, STL, IGES, DWG Download | 10x26x8 mm
1 / 5
Available File Formats
STEP(.step / .stp)
IGES(.iges / .igs)
SAT(.sat)
OBJ(.obj)
FBX(.fbx)
STL(.stl)
3MF(.3mf)
DWG(.dwg)
DXF(.dxf)
PDF(.pdf)

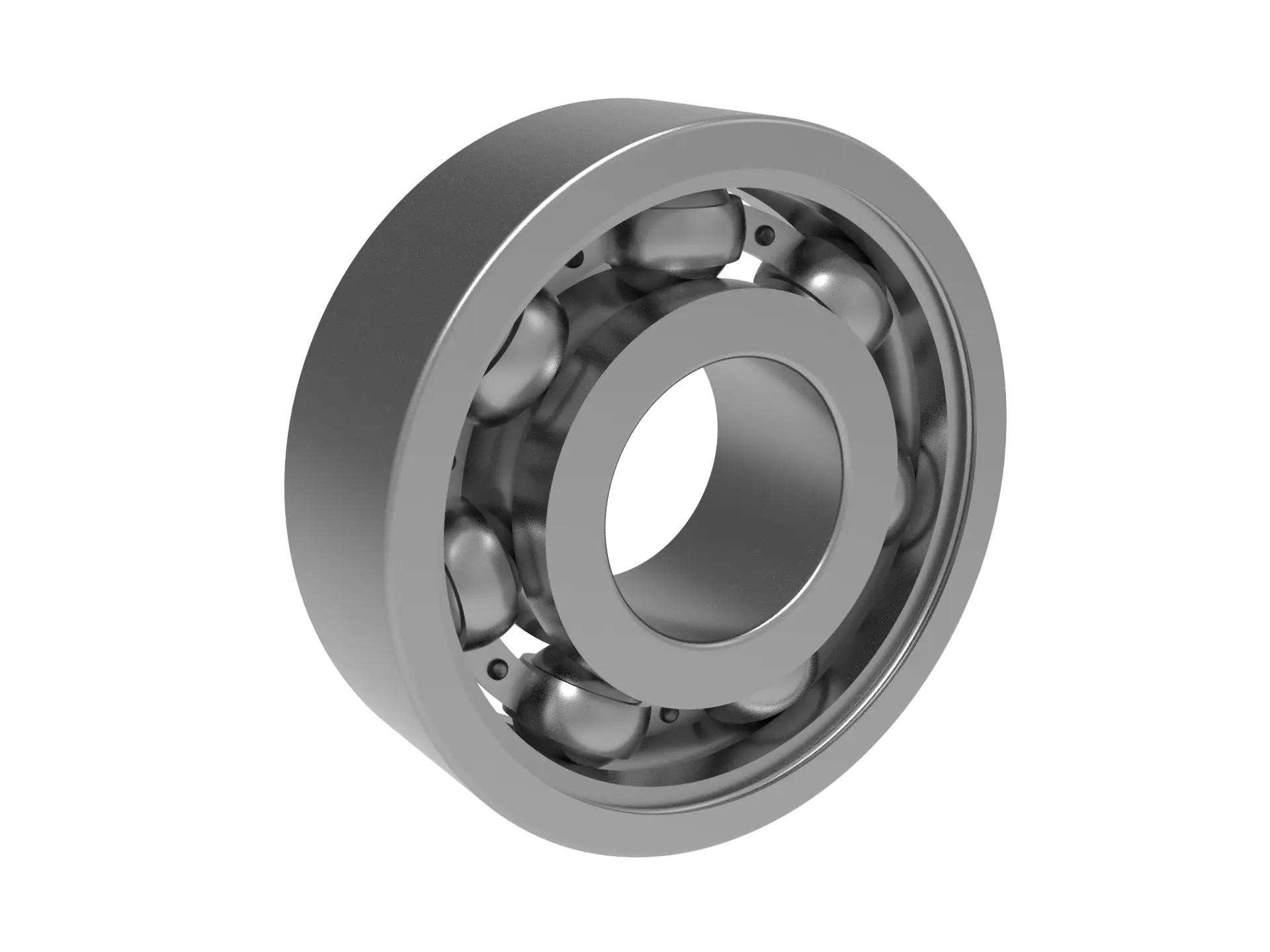

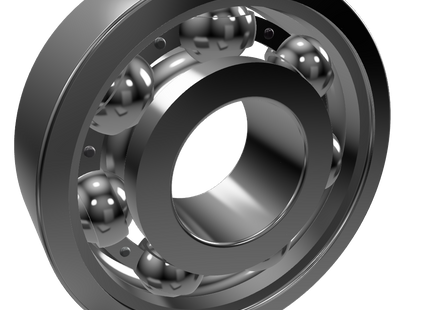

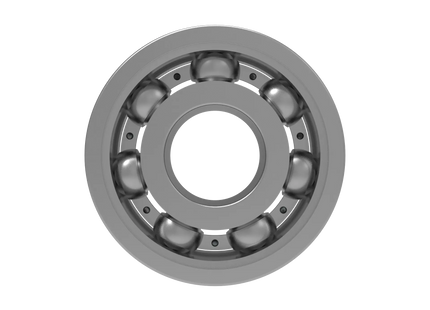

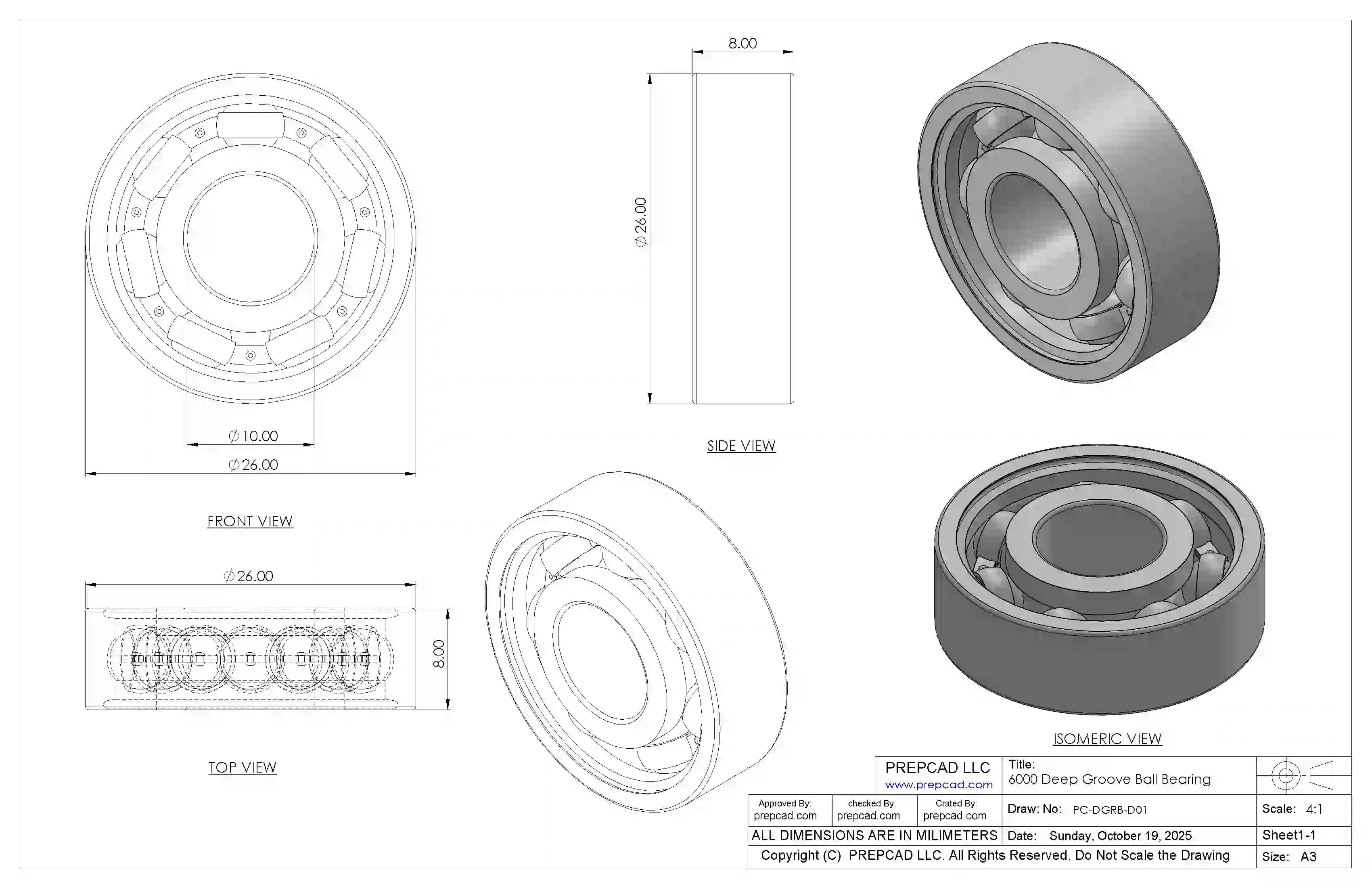

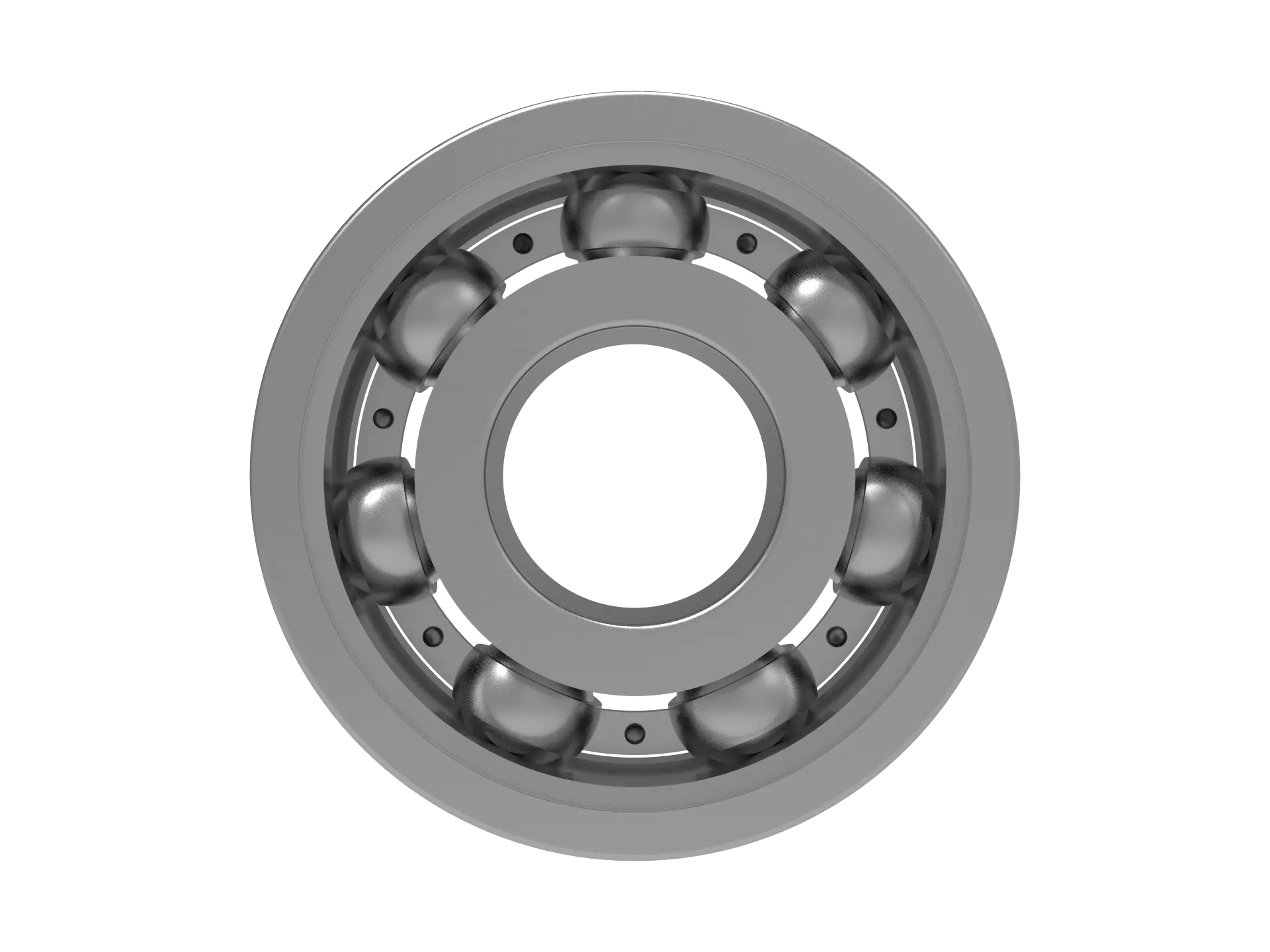

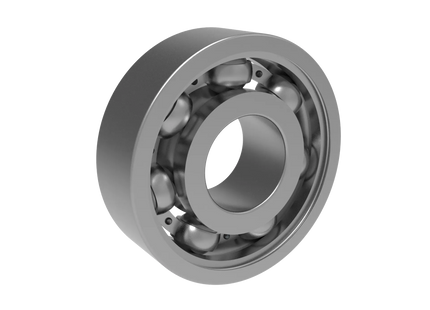

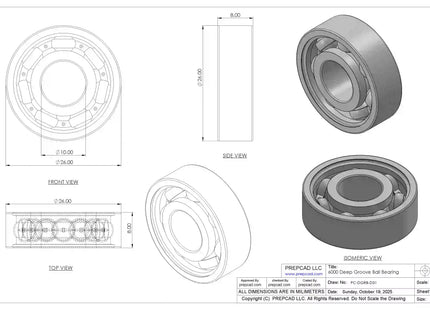

The 6000 Series Deep Groove Ball Bearing CAD Model is a high-quality and dimensionally accurate 3D model designed for mechanical engineers, product designers, and CAD professionals.
The 6000 series bearings feature a single-row deep groove structure, allowing smooth rotation, low friction, and reliable performance in a wide range of machinery. This CAD model is created based on standard bearing dimensions, making it suitable for mechanical assemblies, machine design, product development, and engineering simulations.
This CAD model helps designers quickly integrate a standard bearing component into their projects without spending time modeling the geometry manually.
| Bearing Type : Deep Groove Ball Bearing | Bearing Series : 6000 Series |
| Structure : Single Raw | Sealing Options : Open |
|
Lubrication : Grease Lubricated |
Inner Diameter (mm) : 10mm |
| Outer Diameter : 26mm | Width : 8mm |
| Dynamic load capacity : 4.8 KN | Static load capacity : 1.97 KN |
| Fatigue load limit : 0.09 KN | Weight : 0.018 kg |
| Reference thermal speed : 28000 tr/min | Mechanical Limit Speed : 51000 tr/min |
