3" NPT Female‑to-Male 90° Elbow Adapter – 3D CAD Model (STEP, STL, IGES, DWG, DXF)
1 / 5
Available File Formats
STEP(.step / .stp)
IGES(.iges / .igs)
SAT(.sat)
OBJ(.obj)
FBX(.fbx)
STL(.stl)
3MF(.3mf)
DWG(.dwg)
DXF(.dxf)
PDF(.pdf)

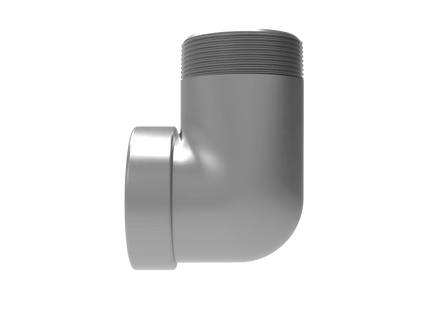

90° Elbow Adapter – 3" NPT Female x Male | CAD Model Download
Enhance your mechanical and piping design projects with this detailed 3D CAD model of a 90-degree elbow adapter featuring a 3" NPT female to male thread configuration. Perfect for tight-space fluid routing in pneumatic, hydraulic, and industrial systems.
| Connection Type | Pipe |
| Connection Style | Treaded |
| Connection | NPT Female x NPT Male |
| Thread Size | 3" NPT |
| Format Included | STEP,STL,IGES,3MF,.PRT,DWG,DXF,PDF,JPEG |
| Compatibility | SolidWorks, Fusion 360, AutoCAD, Free CAD, CATIA, Creo |
