3/8"-16 Set Screw (Grub Screw) | Download 3D CAD Models (STEP, IGES, STL, DWG, DXF)

FREE

Select Bolt Length

Digital Product Only: Digital Download Only — No Physical Product Included.

Available File Formats

STEP(.step / .stp)
IGES(.iges / .igs)
SAT(.sat)
OBJ(.obj)
FBX(.fbx)
STL(.stl)
3MF(.3mf)
DWG(.dwg)
DXF(.dxf)
PDF(.pdf)

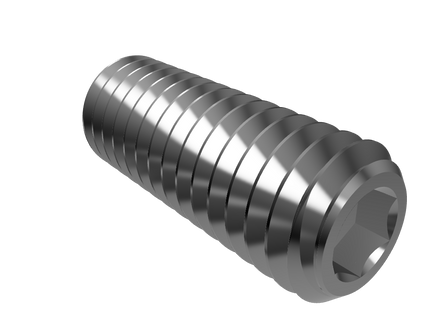

The 3/8"-16 Set Screw, also known as a Grub Screw, is designed for securing components without a protruding head, providing a clean and compact assembly solution. This high-precision CAD model is ideal for use in mechanical assemblies, industrial equipment, and custom engineering projects.

Our downloadable CAD package includes multiple file formats (STEP, STL, IGES, DWG, DXF) to ensure compatibility with popular design software such as SolidWorks, AutoCAD, Fusion 360, Inventor, and CATIA.

Type Set Screw (Grub Screw)
Thread Size 3/8"-16
Length 1 Inch / Customizable Length
Head Type Headless
Drive Type Hex Socket
System Of Measurement Inch
Tread Direction Right Hand
Tread Fully Treaded
CAD Formats STEP,STL,IGES,3MF,.PRT,DWG,DXF,PDF,JPEG
Use Cases 3D assemblies, machine design, simulation, 3D printing
