Description

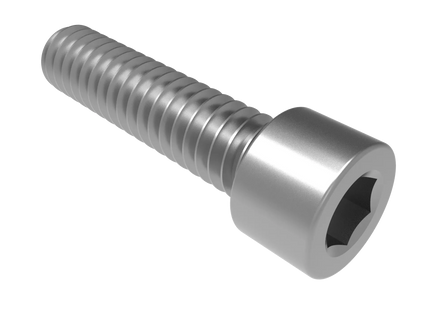

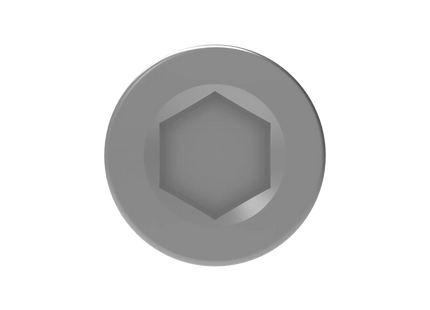

This professional-grade CAD model represents a standard 1/4-20  UNC (Unified National Coarse) Socket head bolt designed in strict  accordance with ASME B18.3 dimensional standards and ASME B1.1 thread specifications.

his accurate digital model is perfect for mechanical design, assembly drawings, 3D printing, manufacturing, and engineering projects.

Our socket head cap screw model features exact dimensional accuracy based on industry standards, including precise thread modeling, hex socket geometry, and proper head dimensions. Ideal for use in SolidWorks, AutoCAD, Fusion 360, and other major CAD platforms.

Whether you're designing machinery, creating assemblies, prototyping, or need a reference model for 3D printing, this professional-grade CAD file will save you hours of modeling time.

Included Cad File Formats

• STEP(.step / .stp): 3MF (.3mf)
• IGES (.iges / .igs): FBX (.fbx)
• SAT (.sat): DWG (.dwg)
• STL (.stl): DXF (.dxf)
• OBJ(.obj): PDF (.pdf)

Why Buy Our Cad Models

• Instant Download Zero Delay – Start using the models right after purchase.
• Save Time & Focus on Innovation – No need to model from scratch. Trusted by engineers & designers.
• Multiple File Formats – Compatible with SolidWorks/ Fusion 360/ AutoCAD & more.
• Affordable & Scalable – Premium-quality models without the high design cost.
• Perfect for Students & Professionals – Learn build or present with ease
