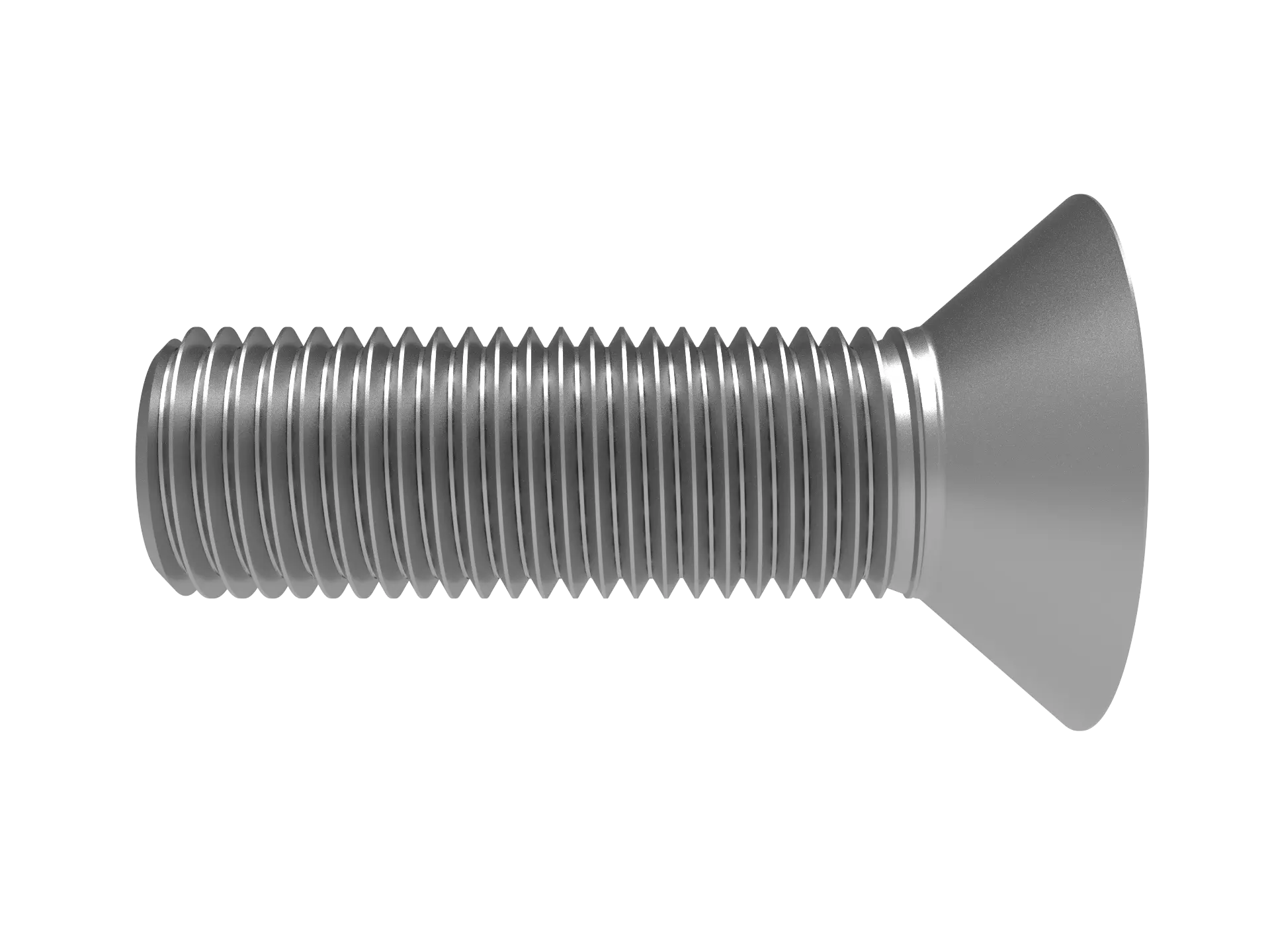

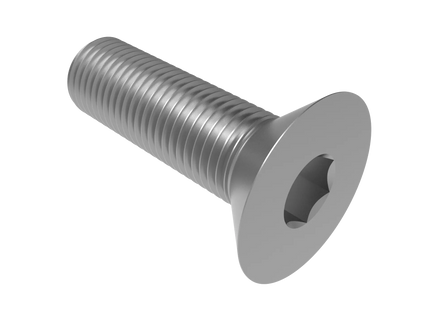

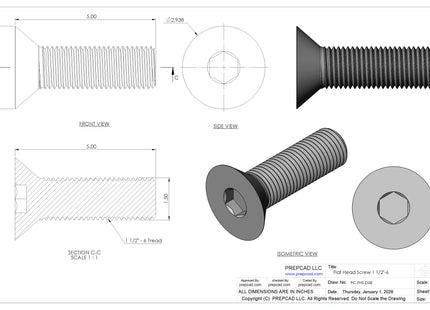

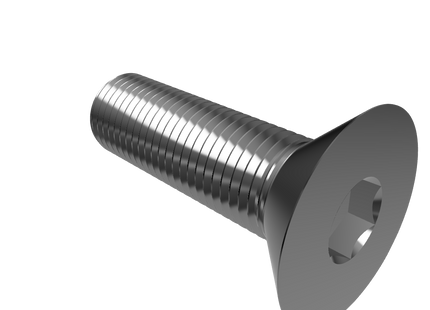

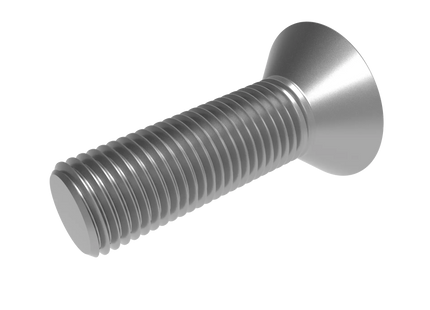

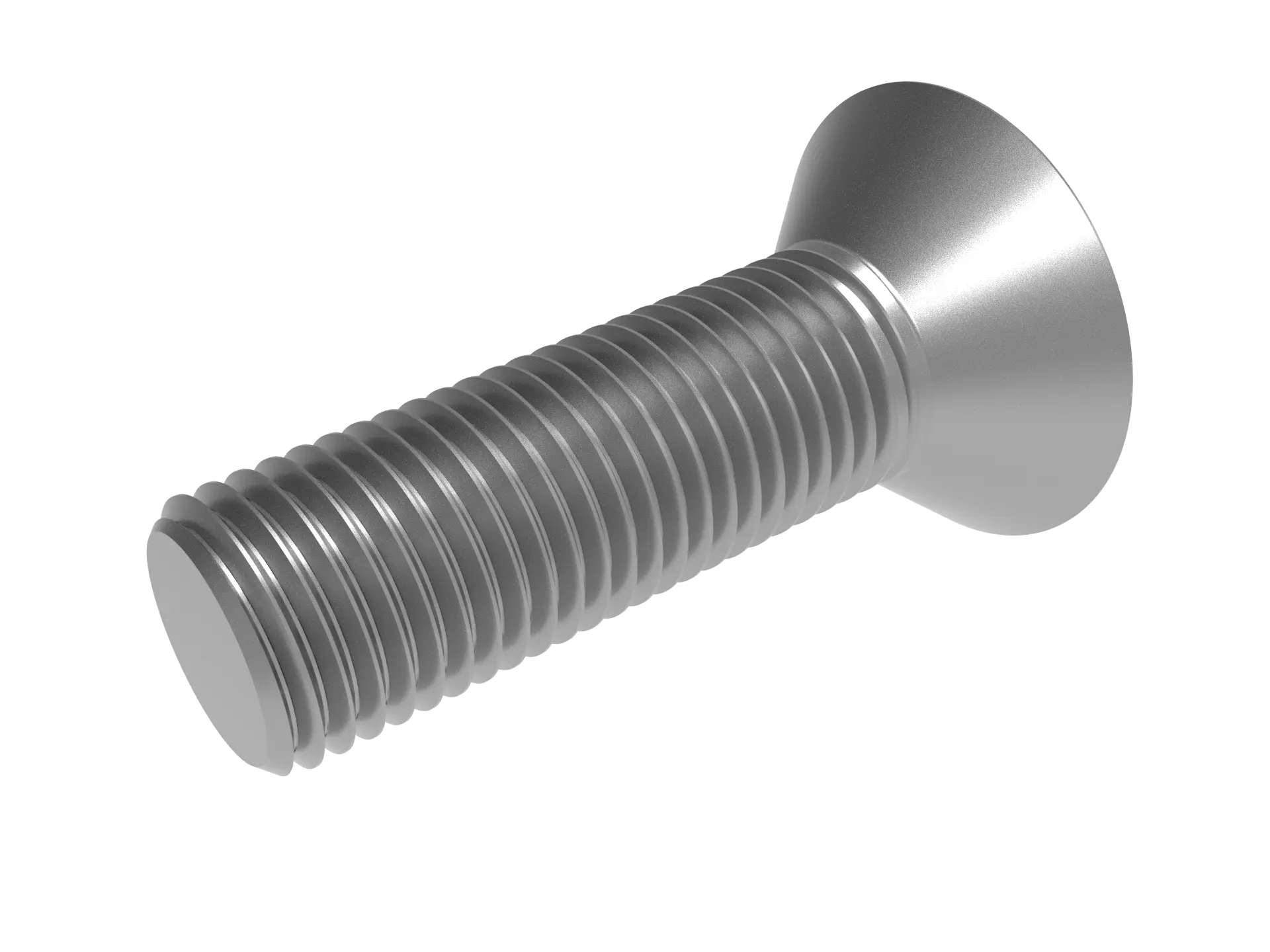

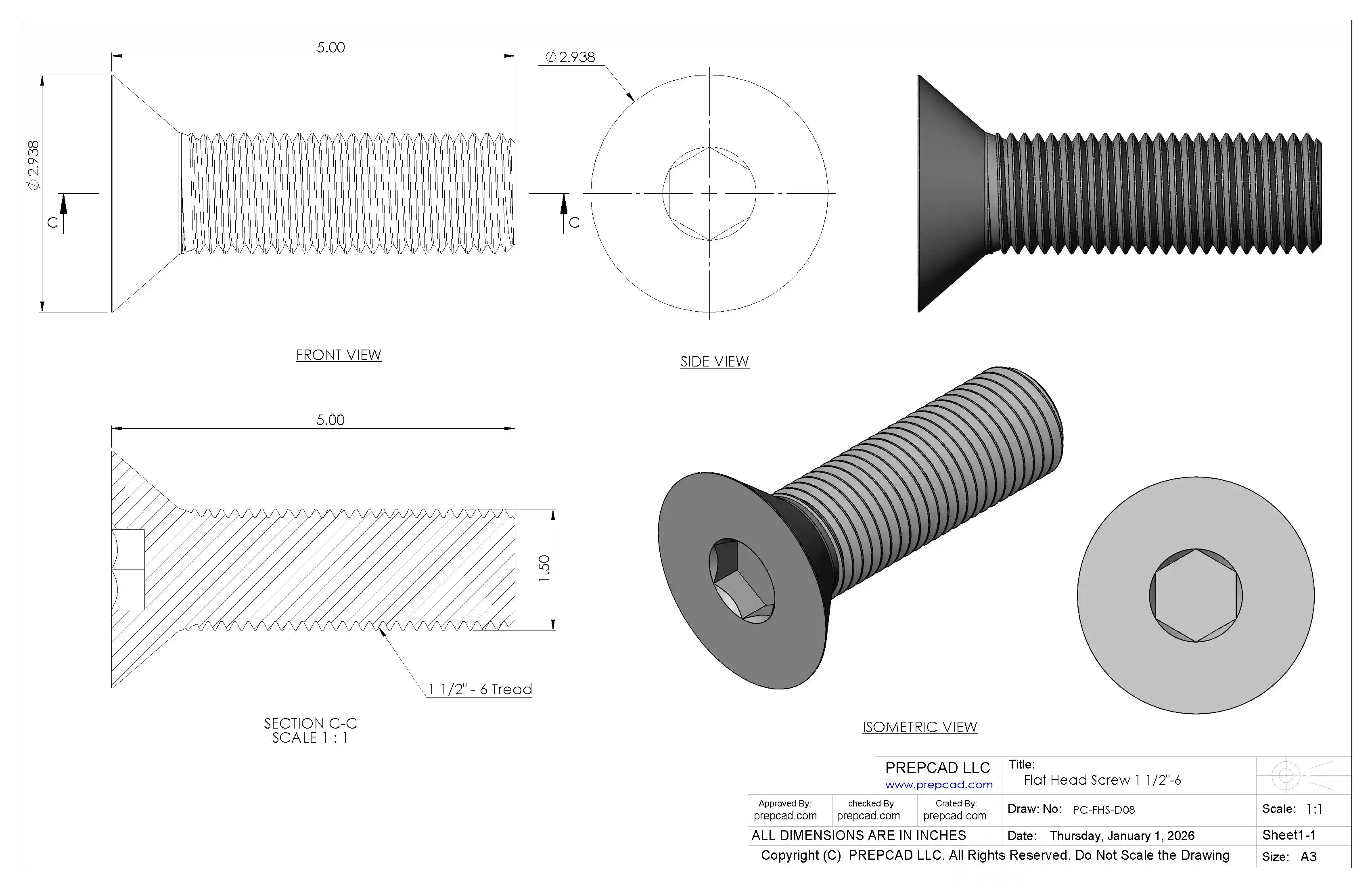

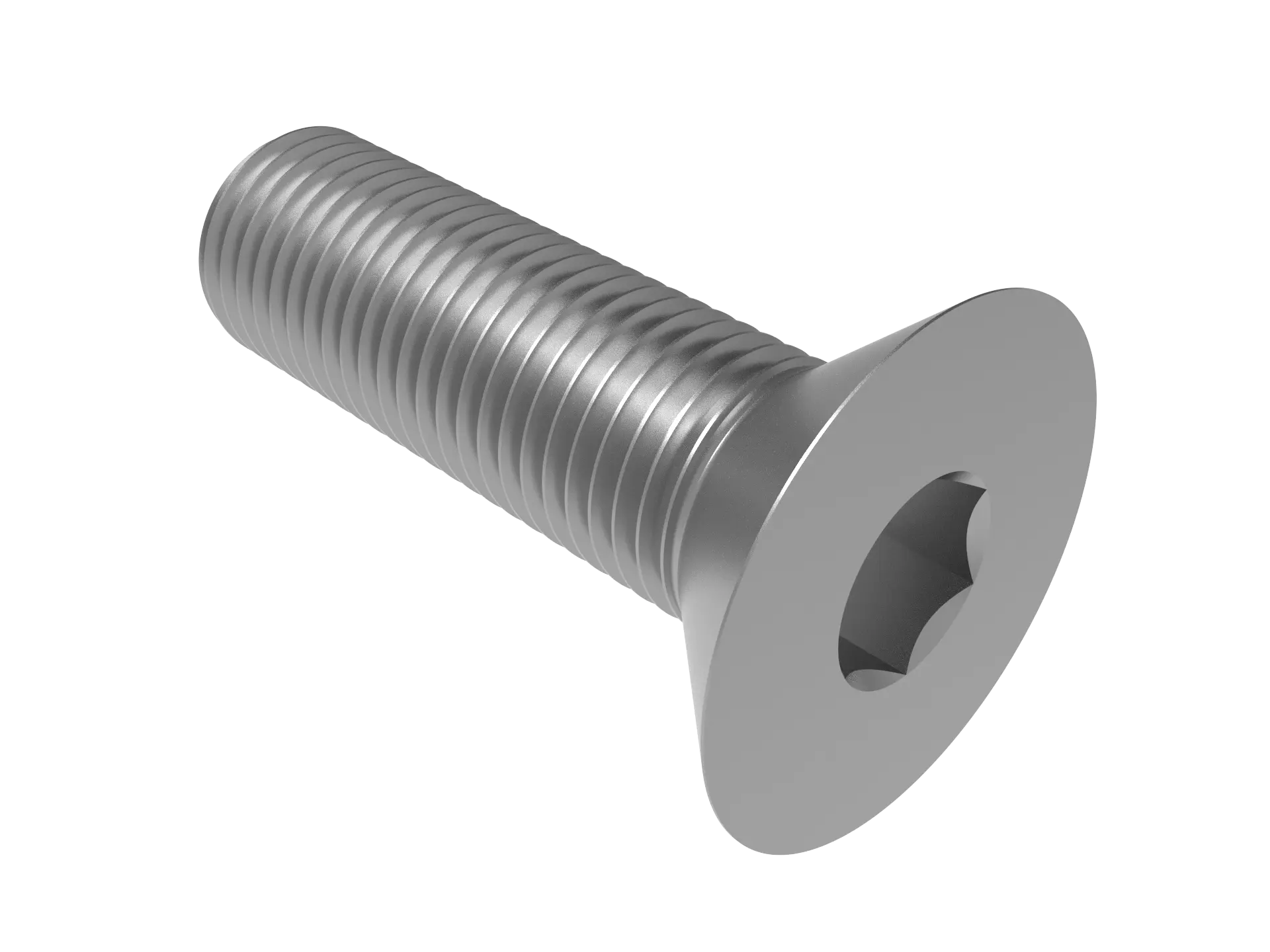

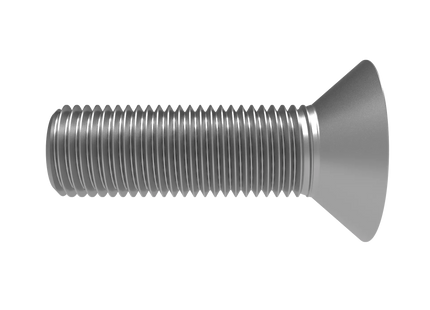

1 1/2"-6 Flat Head Screw 3D CAD Model | STEP, IGES, STL, OBJ , FBX, DWG, DXF

FREE

Select Bolt Length

Digital Product Only: Digital Download Only — No Physical Product Included.

Available File Formats

STEP(.step / .stp)
IGES(.iges / .igs)
SAT(.sat)
OBJ(.obj)
FBX(.fbx)
STL(.stl)
3MF(.3mf)
DWG(.dwg)
DXF(.dxf)
PDF(.pdf)

Elevate your engineering and design projects with this precision-modeled 1 1/2"-6 Flat Head Screw CAD file. Ideal for mechanical assemblies, prototyping, and industrial design, this model is designed to meet common industry standards.

After purchase, receive immediate access to all supported formats. Perfect for students, engineers, and designers seeking ready-made, editable 3D models.

Type Flat Head Screw
Thread Size 1 1/2"-6
Length 5 Inch / Customizable Length
Head Type Flat Head (Countersunk)
Drive Type Hex Socket
System Of Measurement Inch
Tread Direction Right Hand
Tread Fully Treaded
CAD Formats STEP(.step / .stp) , IGES (.iges / .igs) , SAT (.sat) , PRT (.prt) , STL (.stl) , FBX (.fbx) , OBJ(.obj) ,3MF  (.3mf) , DWG (.dwg) , DXF (.dxf) , PDF (.pdf)  , JPEG(jpeg)
Use Cases 3D assemblies, machine design, simulation, 3D printing
